RF Components

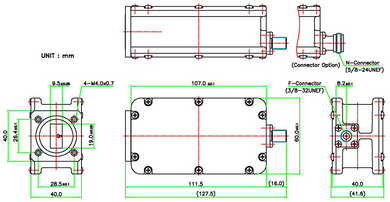

 KEY SPECIFICATIONSBandKu-BandExternal Ref Freq10 MHz (sine-wave), - 5 to +5 dBmInput Frequency Band 112.20 - 12.70 GHzLO Frequency 111.25 GHzLO StabilityExt RefLO TypePLLNoise Figure Typ1.2 dBNumber Of Onboard LosSingle-BandOutput Frequency Band 1...

 ATOMBKU040EFR in FW v1.0.6.1 supports features: Rev PowerFault, Gain Adjust, and 4 Calibration Tables. This high efficiency of ATOM reduces power consumptionsignificantly, delivering considerable operational costsavings over the lifetime of the...

 KEY SPECIFICATIONSBandC-BandInput Frequency Band 14.01 - 4.20 GHzLO Frequency 15.15 GHzNumber Of Onboard LosSingle-BandOutput Frequency Band 1 950 - 1140 MHzRejection Range< 3.91 GHz and > 4.8 GHzRF SPECIFICATIONSConversion Gain Max70 dBConversion...

 KEY SPECIFICATIONSBandKa-BandInput Frequency Band 117.20 - 18.20 GHzInput Frequency Band 218.20 - 19.20 GHzInput Frequency Band 319.20 - 20.20 GHzInput Frequency Band 420.20 - 21.20 GHzLO Frequency 116.25 GHzLO Frequency 217.25 GHzLO Frequency 318...

 KEY SPECIFICATIONSBandC-BandInput Frequency Band 13.90 - 4.80 GHzLO Frequency 15.75 GHzLO TypePLLNoise Temperature Max30KNumber Of Onboard LosSingle-BandOutput Frequency Band 1 950 - 1850 MHzRF SPECIFICATIONSConversion Gain Max70 dBConversion Gain...

 KEY SPECIFICATIONSBandKa-BandExternal Ref Freq10 MHz (sine-wave), - 10 to 0 dBmInput Frequency Band 117.852 - 18.588 GHzInput Frequency Band 218.372 - 19.300 GHzLO Frequency 116.80 GHzLO Frequency 217.40 GHzLO TypePLLNoise Figure Max1.5 dBNoise...
