Multiplexer

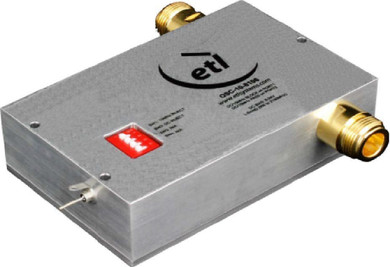

10MHz ovenised oscillator / source with L-band, 10MHz and DC multiplexed output. Applications: Typical fields of applications are telecom infrastructures, satellite systems, microwave links, test and instrumentation and radar networks. • 10...

MUXL1P-4117 multiplexes L-band (850-2150MHz), 10MHz and DC onto Port1, 10 MHz pass and DC block on Port1. 10MHz Input port is DC blocked. Up to 7 amp DC rating.

MUXL1P-4118 multiplexes L-band (850-2150MHz) DC & 10 MHz onto Port1. Port1 and Port2 are DC pass, and the 10MHz Input port is DC blocked. Offers higher isolation of 42dB

MUXL1P-4112 multiplexes L-band (850-2150MHz), 10MHz and DC onto Port1. 10MHz Input port is DC blocked. Applications: Typical fields of applications are telecom infrastructures, satellite systems, microwave links, test and instrumentation and radar...

4-port multiplexer with high rejection performance. DC inject now through an RF connector for improved durability. 50R and 75R connector options available. Applications: Typical fields of applications are telecom infrastructures, satellite...

MUXL1P-4104 multiplexes L-band (850-2150MHz) and 10MHz onto Port2 with DC injection onto the Port1. 10MHz Input port and Port2 are DC blocked. Applications: Typical fields of applications are telecom infrastructures, satellite systems, microwave links,...

MUXL1P-4103 multiplexes L-band (850-2150MHz), 10MHz and DC onto Port1. 10MHz Input port and Port2 are DC blocked. Applications: Typical fields of applications are telecom infrastructures, satellite systems, microwave links, test and instrumentation and...

MUXL1P-4102 multiplexes L-band (850-2150MHz), 10MHz and DC onto Port2. 10MHz port is DC blocked. Applications: Typical fields of applications are telecom infrastructures, satellite systems, microwave links, test and instrumentation and radar networks.

MUXL1P-4100 multiplexes L-band (850-2150MHz) and 10MHz onto Port1. All ports are DC blocked.  Applications: Typical fields of applications are telecom infrastructures, satellite systems, microwave links, test and instrumentation and radar networks.

IP67 weatherproof MUXL1P-4100 multiplexes L-band (850-2150MHz) and 10MHz onto Port1. All ports are DC blocked.    Applications: Typical fields of applications are telecom infrastructures, satellite systems, microwave links, test and...

MUXL1P-4111 multiplexes L-band (850-2150MHz), 10MHz and DC onto Port1. 10MHz Input port and Port2 are DC blocked. Up to 7 amp DC rating. Applications: Typical fields of applications are telecom infrastructures, satellite systems, microwave links, test...
