RF Components

 KEY SPECIFICATIONSBandC-BandInput Frequency Band 13.40 - 3.56 GHzRejection≥ 60 dB min at 3.6 GHzRF SPECIFICATIONSGroup Delay Variation1 ns/MHz max.Return Loss≥ 15 dBINTERFACE SPECIFICATIONSRF Input ConnectorCPR-229GRF Output...

 KEY SPECIFICATIONSBandKu-BandExternal Ref Freq10 MHz, -5 to +5 dBmFrequency SenseNon-InvertingInput Frequency Band 1950 - 1750 MHzLO Frequency 112.80 GHzLO Frequency 213.05 GHzNoise Figure Max15 dBNumber Of Onboard LosDual-BandOutput Frequency Band...

 KEY SPECIFICATIONSColorSilverOutput Power Rated96WELECTRICAL SPECIFICATIONSInput Voltage90 - 305 VAC (47 - 63 Hz)Output Voltage+48 VOutput Voltage Accuracy +/- 1.0% of output voltageOutput Voltage Ripple Noise200 mV Peak-to-PeakRated Current2...

 KEY SPECIFICATIONSBandKa-BandExternal Ref Freq10 MHz, -5 to +5 dBmInput Frequency Band 1950 - 1950 MHzLO Frequency 128.05 GHzOutput Frequency Band 129.00 - 30.00 GHzOutput Power Rated160WProduct FamilyBUCRF SPECIFICATIONSGain Adjust Range20 dB...

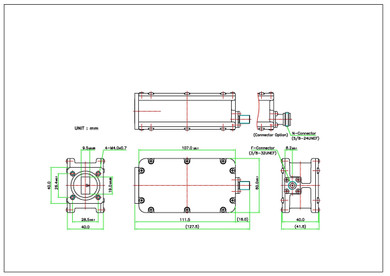

 Ku Band LNB, 11.45-12.2Ghz, L.O Freq:10.50Ghz, L.O Stab: +/-5KHz, Gain: 50dB typ, NF: 0.8dB, N-ConnKEY SPECIFICATIONSBandKu-BandImage Rejection40 dBc minInput Frequency Band 111.45 - 12.20 GHzLO Frequency 110.50 GHzNoise Figure Max0.9 dBNoise...

 KEY SPECIFICATIONSBandC-BandInput Frequency Band 13.40 - 4.80 GHzRF SPECIFICATIONSConversion Gain Max65 dB Conversion Gain Min50 dB Conversion Gain Typ60 dB Gain Flatness4 dBp-p maxInput VSWR2.2 : 1Noise Temperature Typ45'K maxOutput P1db+ 10 dBm...

 KEY SPECIFICATIONSBandKu-BandBand TypeS: StandardExternal Ref Freq10 MHz (sine-wave), - 5 to +5 dBmInput Frequency Band 1950 - 1450 MHzLO Frequency 113.05 GHzOutput Frequency Band 114.00 - 14.50 GHzOutput Power Rated40WRF SPECIFICATIONSGain...
