RF Components

 KEY SPECIFICATIONSBandKu-BandExternal Ref Freq10 MHz, -5 to +5 dBmInput Frequency Band 110.95 - 11.80 GHzLO Frequency 110.00 GHzLO TypePLLNoise Figure Max0.9 dBNoise Figure Typ0.8 dBNumber Of Onboard LosSingle-BandOutput Frequency Band 1950 - 1800...

 KEY SPECIFICATIONSBandKu-BandExternal Ref Freq10 MHz, -5 to +5 dBmInput Frequency Band 1L: 10.95 - 11.70 GHzInput Frequency Band 2H: 11.70 - 12.75 GHzLO Frequency 1L: 10.00 GHzLO Frequency 2H: 10.75 GHzLO TypePLLNoise Figure Max0.9 dBNoise Figure...

 KEY SPECIFICATIONSBandX-BandInput Frequency Band 18.0 - 8.7 GHzLO Frequency 17.05 GHzLO Stability±10 KHz maxNoise Figure Max13 dBOutput Frequency Band 1950 - 1650 MHzRF SPECIFICATIONSConversion Gain Max33 dB Conversion Gain Min27 dBConversion Gain...

 KEY SPECIFICATIONSBandL-BandFrequency1525MHz ~ 1647MHz (BW122MHz)Rejection≥30 dB at 1000-1500 MHzRejection 2≥30 dB at 1670-1800 MHzRF SPECIFICATIONSImpedance50 ΩInput Average Power Per Port50WInsertion Loss0.45 dB max. at Center FrequencyInsertion...

 KEY SPECIFICATIONSBandC-BandInput Frequency Band 13.40 - 4.80 GHzNoise Figure45K max.RF SPECIFICATIONSConversion Gain Min60 dB Gain Flatness±3 dB max.Input VSWR2.2 : 1 max.Output P1db+ 5 dBm min.Output VSWR2.2 : 1 max.ELECTRICAL...

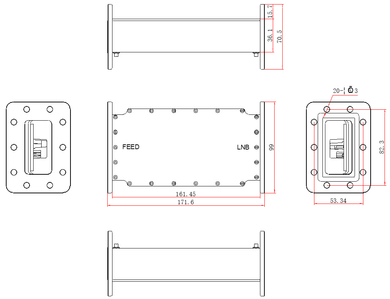

 KEY SPECIFICATIONSBandC-BandGroup Delay Variation30 ns max.Pass Band3550 - 3675.5 MHz & 3945 - 3955 MHzRejection≥55 dB at DC - 3520 MHz ≥55 dB at 3705.5 - 3915 MHz ≥55 dB at 5850 - 6725 MHzRF SPECIFICATIONSInsertion Loss1.2 dB max. at band edges 0...

 KEY SPECIFICATIONSBandC-BandGroup Delay Variation30 ns max.Pass Band3550 - 3700 MHz & 3945 - 3955 MHzRejection≥55 dB at DC - 3520 MHz ≥55 dB at 3730 - 3915 MHz ≥55 dB at 5850 - 6725 MHzRF SPECIFICATIONSInsertion Loss1.2 dB max. at band edges 0.3 dB...
