Microwave Filter Company
Microwave Filter Company 19189 CATV Highpass Filter for DOCSIS 3.1 Testing
Product Code:
19189
Condition:
New
Weight:
1.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
These highpass filters are used for CATV equipment proofing/testing as it relates to DOCSIS 3.1.
| Product Specifications | |
| Type | Highpass Filter |
| Passband | 552 - 1002 MHz |
| Insertion Loss | 2 dB Max |
| VSWR | 1.5:1 |
| Impedance | 75 ohms |
| Connectors | F-female |

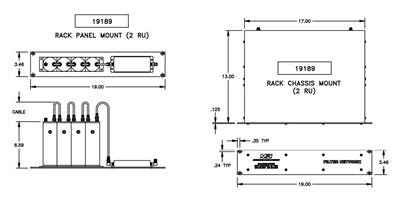

| Size | 19" Rack Panel Mounted for Indoor Use |
| Rejection | 20 dB Typ from (40 - 544) MHz, 10 dB Min @ 546 MHz |
5 customers are viewing this product
Details
These highpass filters are used for CATV equipment proofing/testing as it relates to DOCSIS 3.1.
| Product Specifications | |
| Type | Highpass Filter |
| Passband | 552 - 1002 MHz |
| Insertion Loss | 2 dB Max |
| VSWR | 1.5:1 |
| Impedance | 75 ohms |
| Connectors | F-female |
| Size | 19" Rack Panel Mounted for Indoor Use |
| Rejection | 20 dB Typ from (40 - 544) MHz, 10 dB Min @ 546 MHz |
