RF Components

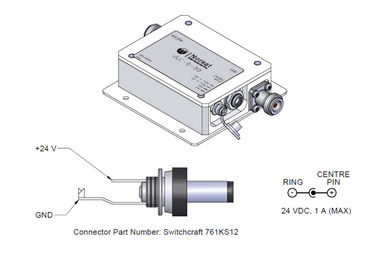

 KEY SPECIFICATIONSTone Amplitude0.55 ~ 0.9 vppTone Frequency20 ~ 24 kHzELECTRICAL SPECIFICATIONSCurrent Consumption500 mA max.Power Requirements+23 to +25 V DCINTERFACE SPECIFICATIONSBand SelectionBand Select by Rotary SW: Band 1: 13 VDC Band 2: 13...

 KEY SPECIFICATIONSBandKu-BandExternal Ref Freq10 MHz (sine-wave), - 5 to + 5 dBmInput Frequency Band 1950 - 1700 MHzLO Frequency 111.80 GHz and 12.05 GHzOutput Frequency Band 112.75 - 13.50 GHzOutput Power Rated40WRF SPECIFICATIONSGain Flatness...

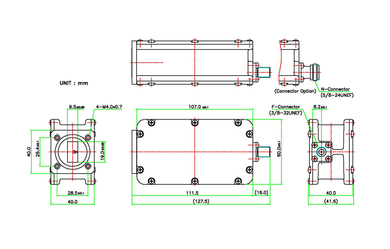

 KEY SPECIFICATIONSBandKu-BandExternal Ref Freq10 MHz (sine-wave), - 5 to + 5 dBmInput Frequency Band 1Band 1: 950 - 1700 MHz Band 2: 950 - 1450 MHzLO StabilityBand 1: 12.05 GHz Band 2: 11.80 GHzOutput Frequency Band 1Band 1: 13.00 - 13.50 GHz Band...

 KEY SPECIFICATIONSBandC-BandColourFS36231External Ref Freq10 MHz (sine-wave), - 10 to 0 dBmInput Frequency Band 13.40 - 4.20 GHzLO Frequency 15.15 GHzLO TypePLLNoise Figure Max25K Noise Figure Typ20KNumber Of Onboard LosSingle-BandOutput Frequency...

 KEY SPECIFICATIONSBandKu-BandExternal Ref Freq10 MHz (sine-wave), - 5 to +5 dBmFrequency SenseNon-invertedInput Frequency Band950 - 1750 MHzLO Frequency10.75 GHzOutput Frequency Band11.70 - 12.50 MHzOutput Power Rated4 WRF SPECIFICATIONSGain...

 • Easily installed between the feed and LNB• Suitable for use with Norsat’s C-Band LNBs• Environmentally sealed and moisture resistant (IP66)KEY SPECIFICATIONSBandC-BandFrequency Range3.70 - 4.20 GHzRejection55 dB min from 3.40 GHz to 3.50 GHz 55...

 KEY SPECIFICATIONSCI Option Logic LevelsL: 0 - 0.8 V; H: 2.5 - 7 V (20mA)Reference Signal10MHz internalTone Amplitude0.55 ~ 0.9 vppTone Frequency20 ~ 24 kHzRF SPECIFICATIONSOutput VSWR2.0 : 1 max.ELECTRICAL SPECIFICATIONSCurrent Consumption600...
