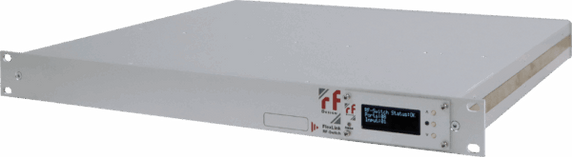

RF-Design FlexLink SP8T/SP16T Series Broadband 10MHz – 3,25GHz Switch Units
Product Code:
SP8T || SP16T
Condition:
New
Weight:
7.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The FlexLink-SP8T and -SP16T series represents professional and reliable RF-switch units available 8:1 and 16:1 in 1RU/19″.
The FlexLink-SP8T and -SP16T RF-switches are perfectly suited for integration in Teleports, Satellite Earth-Stations, as well as Broadcasting and CATV/IPTV architectures.
The units feature RF-power monitoring (upon request) and come with 1:1 power-supply redundancy (hot-swappable). Excellent RF performance assures stable operation and perfect signal quality. A front-panel LC-Display/keypads allow user-friendly local configuration while remote configuration can be realized via its Ethernet Interface (WebGUI/SNMP).
Key Features
- Space saving 1RU/19" rack mount design
- 8:1, 16:1 RF Switches
- Supports 10MHz – 3,25GHz
- Available with 50Ohm SMA(f)
- Front panel status LED´s
- Excellent and stable RF performance Local control via front panel LC-Display/keypads
- Remote control via Ethernet-Interface (WebGUI, SNMP)
- 1:1 redundant dual power supply
| TECHNICAL SPECIFICATIONS | |
| Dimensions | 1RU/19” or 3RU/19” rack mount chassis |
| Power Supply | 85 – 230V, 50/60Hz, 1:1 redundant (hot-swappable) |
| Power Consumption | >10W |
| Frequency Range | 10 – 3250MHz |
| Input/Output Connectors | 50Ohm SMA(f) |
| Switching Capacity | 8:1, 16:1 |
| Input / Output Return Loss | 18dB min. |
| RF-Power Max | +46dBm |
| Isolation | >60dB (all ports) |
| Insertion Loss | SP8T: 0dB typ., ±0,5dB max. SP16T: 0dB typ., ±1,0dB max. |
| Frequency Response | < ±2,0dB |
| 1dB Compression | +36dBm |
| Local Configuration | LC-Display/keypads |
| Remote Configuration | Ethernet-Interface (WebGUI, SNMPv2c) |
| Monitoring/Alarming | Remote & front panel monitoring and alarming |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -10°C to 70°C |
| Humidity | 90%, non-condensing |
| RoHS | Compliant |
| MTBF | 390khours MIL-HDBK-217F (25℃) |
| Environmental Conditions | ETS 300019 Part 1-3 Class 3.1E |
| EMC / Security | According EN50083-2 / According EN60950-0 |
