RF-Design HQR245C-FT 1+1 redundant / 2 single high precision L-Band Amplifier (gain 0 to 40dB, Step 0.2dB)
Product Code:
HQR245C-FT
Condition:
New
Weight:
6.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

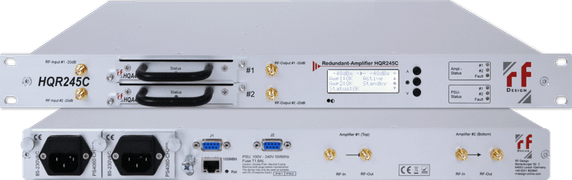

The HQR245C-FT represents a 1+1 redundant RF line amplifier in a compact 1RU/19″ rack mount operating at L-Band (950 – 2150MHz) frequency useable as 1+1 or dual single operational amplifier.
It comes with variable gain control ranging from 0 to 40dB in 0,1dB step along with slope equalization (module HQA45MGFT) and various additional functionalities. For highest operational performance the HQR245C-FT is available with Amplifier Module HQA45MGFTNS (no slope) for highest return loss > 18dB.
Key Features
- Space saving and compact 1RU/19″ rack mount design
- 1+1 redundant operating amplifier modules
- Operation Mode 1:1 redundant or two single amplifiers
- Less than 5ms switchover between amplifiers 1 & 2
- Variable gain adjusts 0 to 40dB, 0.1dB steps (MGC/AGC)
- Slope equalization 0 to 7dB, 1dB steps with HQA45MGFT
- RF power monitoring for both amplifier-modules (In & Output)
- Threshold alarm function and switchable output limiter
- 2 x 2 front panel monitoring ports -20dB (Input & Output)
- 1:1 redundant dual power supply (hot-swappable)
- MTTF Counter and Warning Function for Power Supplies
- Front panel status LED´s (amplifier & power supply status)
- Local configuration via front panel LC-Display/keypads
- Remote configuration via Ethernet-Interface (WebGUI, SNMP)
| TECHNICAL SPECIFICATIONS | |
| Chassis | 1RU/19” rack mount |
| Power Supply | 90 – 264V, 50/60Hz, 1:1 redundant (hot-swappable) |
| Power Consumption | <10W |
| Frequency Range | 950 – 1750MHz and 2150MHz |
| Input/Output Connectors | 50Ohm SMA(f) |
| Input Return Loss | 14dB min. with L-Band Module HQA45MGFT, 16dB min. with L-Band Module HQA45MGFTNS |
| Output Return Loss | 16dB min. |
| Frequency Response | ±0,5dB typ., ±1,0dB max., ±0,2dB max. in 40 MHz, ±0,1dB max. in 10 MHz Window |
