Intellian

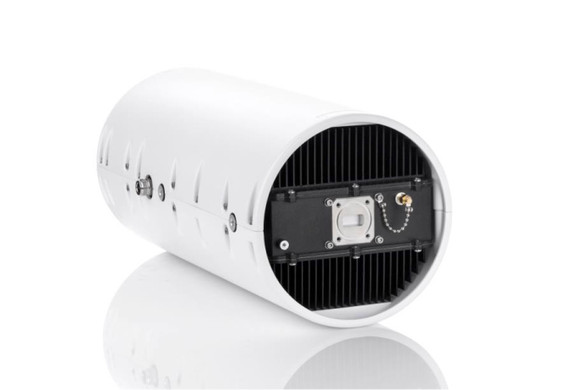

Intellian V5-3024 Ku-Band TITAN Block Upconverter 200W
Product Code:
V5-3024
Condition:
New
Weight:
7.30 KGS
Width:
17.80
(cm)
Height:
17.80
(cm)
Depth:
39.40
(cm)
$59,704.62
The 200W TITAN Ku-Band Block Upconverter is the industry’s most compact & lightweight 200W solid state power amplifier. Mission Microwave’s proprietary power combining technology and thorough system optimization have produced a rugged 16 lb amplifier that mounts directly on an antenna boom, eliminating excess losses to the feed.
The revolutionary design features a compact form factor which provides improved cooling over more conventional package designs. Improved cooling equates to higher reliability, even in the most demanding of applications and extreme environments (-40°C to +60°C). The BUC’s stellar performance offers the highest useable output power for the lowest power consumption of any amplifier in its class.
FEATURES
- 200W of Saturated Output Power for Fixed and Mobile High Data Rates
- Industry’s Highest Efficiency drawing only 670W at Linear Output Power
- Extremely Compact 16 lb Package
- High Reliability for long life under the harshest conditions
- Small enough to integrate directly onto boom arm
- Multiple M&C interfaces: RS-485, RS-232, optional Ethernet, optional Bluetooth remote control
- Optional 1:1 or 1:2 Redundancy Systems
5 customers are viewing this product
Details
The 200W TITAN Ku-Band Block Upconverter is the industry’s most compact & lightweight 200W solid state power amplifier. Mission Microwave’s proprietary power combining technology and thorough system optimization have produced a rugged 16 lb amplifier that mounts directly on an antenna boom, eliminating excess losses to the feed.
The revolutionary design features a compact form factor which provides improved cooling over more conventional package designs. Improved cooling equates to higher reliability, even in the most demanding of applications and extreme environments (-40°C to +60°C). The BUC’s stellar performance offers the highest useable output power for the lowest power consumption of any amplifier in its class.
FEATURES
- 200W of Saturated Output Power for Fixed and Mobile High Data Rates
- Industry’s Highest Efficiency drawing only 670W at Linear Output Power
- Extremely Compact 16 lb Package
- High Reliability for long life under the harshest conditions
- Small enough to integrate directly onto boom arm
- Multiple M&C interfaces: RS-485, RS-232, optional Ethernet, optional Bluetooth remote control
- Optional 1:1 or 1:2 Redundancy Systems
Download
| Download Name | |
| Intellian V5-3024 Datasheet | |
