RF-Design FlexLink R25 Distributive IF 10 – 200MHz Switch Matrix System 64:64
Product Code:
R25C-5-D
Condition:
New
Weight:
45.00 KGS
Width:
48.26
(cm)
Height:
22.25
(cm)
Depth:
50.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

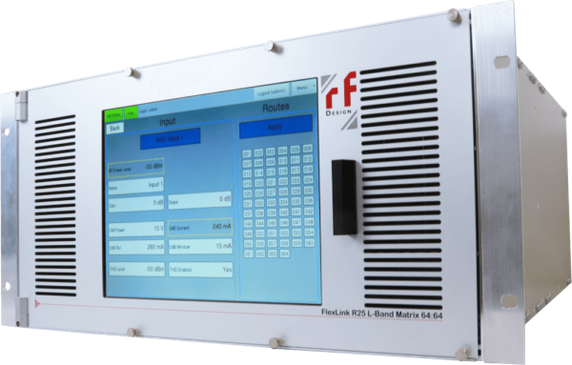

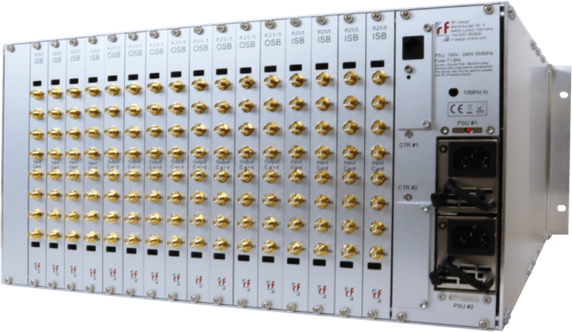

The FlexLink R25 represents an unique, innovative & clever IF 200MHz Switch Matrix system (10 – 200MHz), built into a 5RU/19″ rack mount chassis with only 500mm depth. It comes as scalable fan-out/distributive system allowing to switch/route any selected input to any or all outputs enabling to switch/route various inputs to a dedicated output. The 5RU/19” chassis can be assembled with various input/output configurations from 8:8 to 64:64 (symmetrically & unsymmetrically).
This Switch Matrix replaces very cost-effective standard fix distribution systems and offer a maximum in flexibility combined with state-of-the-art functionalities, features, excellent RF performance and various options. All matrix switch boards are hot-swappable and easy to replace without removing any cables.
Key Features
- Space saving 5RU/19″ modular rack mount design
- IF 10-200MHz support
- From 8:8 to up to 64:64 inputs/outputs within one chassis as fan-out/distributive system
- Easy expandable with external components
- Coax inputs & outputs 50Ohm SMA(f) or BNC(f)
- Hot-swappable controller card and matrix switch boards
- 10.4″ front-side touchscreen LC-Display for local configuration
- 1000MBit Ethernet-Interface (WebGUI, SNMPv2c)
- 1:1 redundant dual power supply (hot-swappable)
- Variable gain control (@ any input)
- Threshold alarming (local and remote signaling)
| ORDER INFORMATION | ||
| Type | Type No. | Short Description |
| FlexLink R25_5-IF200MHz-Matrix Chassis | 9001367 | IF Switch Matrix System 64:64 Input/Output config., Inputs/Outputs 50Ohm SMA(f), 50 - 200MHz, front panel touchscreen, RJ45 Ethernet interface (WebGUI, SNMP), 1:1 dual redundant power supply, 15 x Center Switch-Board 8:8, 50Ohm IF 200MHz integrated. |
| FlexLink R25_5-IF200MHz ISB0816D | 9001418 | Input Switch Board, 8 x RF Input, IF 10 - 200MHz, 50Ohm SMA(f) |
| FlexLink R25_5-IF200MHz OSB1608D | 9001419 | Output Switch Board, 8 x RF Output, IF 10 - 200MHz, 50Ohm SMA(f) |
5 customers are viewing this product
Details
The FlexLink R25 represents an unique, innovative & clever IF 200MHz Switch Matrix system (10 – 200MHz), built into a 5RU/19″ rack mount chassis with only 500mm depth. It comes as scalable fan-out/distributive system allowing to switch/route any selected input to any or all outputs enabling to switch/route various inputs to a dedicated output. The 5RU/19” chassis can be assembled with various input/output configurations from 8:8 to 64:64 (symmetrically & unsymmetrically).
This Switch Matrix replaces very cost-effective standard fix distribution systems and offer a maximum in flexibility combined with state-of-the-art functionalities, features, excellent RF performance and various options. All matrix switch boards are hot-swappable and easy to replace without removing any cables.
Key Features
- Space saving 5RU/19″ modular rack mount design
- IF 10-200MHz support
- From 8:8 to up to 64:64 inputs/outputs within one chassis as fan-out/distributive system
- Easy expandable with external components
- Coax inputs & outputs 50Ohm SMA(f) or BNC(f)
- Hot-swappable controller card and matrix switch boards
- 10.4″ front-side touchscreen LC-Display for local configuration
- 1000MBit Ethernet-Interface (WebGUI, SNMPv2c)
- 1:1 redundant dual power supply (hot-swappable)
- Variable gain control (@ any input)
- Threshold alarming (local and remote signaling)
| ORDER INFORMATION | ||
| Type | Type No. | Short Description |
| FlexLink R25_5-IF200MHz-Matrix Chassis | 9001367 | IF Switch Matrix System 64:64 Input/Output config., Inputs/Outputs 50Ohm SMA(f), 50 - 200MHz, front panel touchscreen, RJ45 Ethernet interface (WebGUI, SNMP), 1:1 dual redundant power supply, 15 x Center Switch-Board 8:8, 50Ohm IF 200MHz integrated. |
| FlexLink R25_5-IF200MHz ISB0816D | 9001418 | Input Switch Board, 8 x RF Input, IF 10 - 200MHz, 50Ohm SMA(f) |
| FlexLink R25_5-IF200MHz OSB1608D | 9001419 | Output Switch Board, 8 x RF Output, IF 10 - 200MHz, 50Ohm SMA(f) |
Download
| Download Name | |
| RF-Design FlexLink R25 Distributive Datasheet | |
