RF-Design
RF-Design FiberLink-CompactLine RF over Fiber
Product Code:
FCLR || FCLS
Condition:
New
Weight:
4.00 KGS
Width:
48.26
(cm)
Height:
4.45
(cm)
Depth:
36.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Modern RF transmission systems require maximum availability, flexibility, and ease of maintenance. The CompactLine platform from RF-Design addresses these requirements through scalable redundancy concepts and integrated system features.
This application note describes:
- Redundancy concepts: 2+1, 4+1, 1:1
- Variants of the 1:1 architecture with independent Monitoring Links for UpLink Observation
- Flexible redundancy activation for upgrade from single to redundant operation
- Integrated testing and commissioning features
- Intelligent switchover criteria and automatic parameter takeover during failover
- Continuous rf and optical power monitoring
- Integrated RF test mode generator for easy link setup
- Optical interface options SC/APC and E2000
- Modular hardware design & hot-swapable components
- Flexible redundancy architecture
- Integrated test capabilities
- Reduced downtime & Simplified maintenance
- Fast commissioning
- Investment protection
- Scalable growth path
- Lower lifecycle costs
- Compact 1U 19” Design
| Overview | |||||

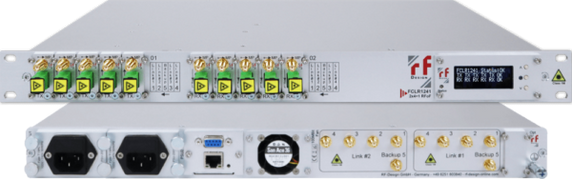

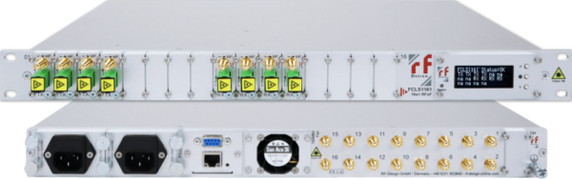

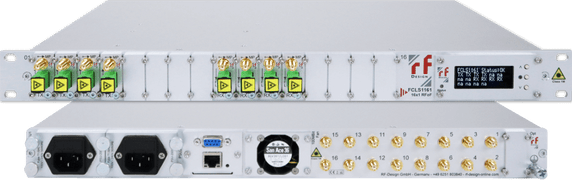

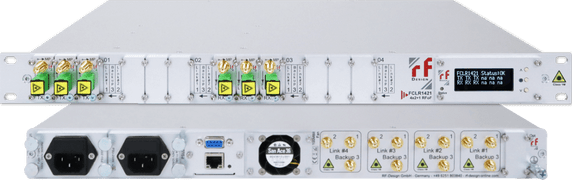

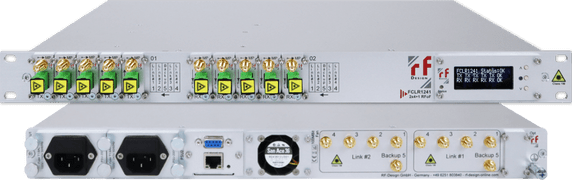

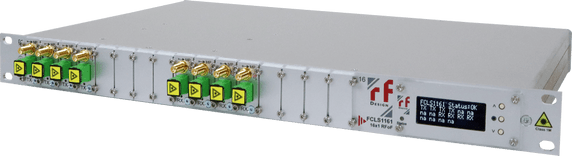

| FCLS1161 | FCLR1411 | FCLR1421 | FCLR1241 | FCLR1811S4 | |
| Chassis | 1RU/19” (360mm deep) | 1RU/19” (360mm deep) | 1RU/19” (360mm deep) | 1RU/19” (360mm deep) | 1RU/19” (360mm deep) |
| Power Supply | 85 – 265V, 50/60Hz, dual 1:1 redundancy (hot-swappable) |
85 – 265V, 50/60Hz, dual 1:1 redundancy (hot-swappable) |
85 – 265V, 50/60Hz, dual 1:1 redundancy (hot-swappable) |
85 – 265V, 50/60Hz, dual 1:1 redundancy (hot-swappable) |
85 – 265V, 50/60Hz, dual 1:1 redundancy (hot-swappable) |
| TX/RX Module Capacity | 16 x Ext. L- Band + 2 x 10MHz | 8 x Ext. L- Band + 2 x 10MHz | 8 x Ext. L-Band + 2 x 10MHz | 10 x Ext. L-Band + 2 x 10MHz | 16 + 4 Ext. L-Band |
| Links | 16 non redundant Links 2 non redundant Links |
4 red. Links 1 red. Link 10MHz |
4 red. Links 1 red. Link 10MHz |
8 red. Links 1 red. Link 10MHz |
8 redundant Links 1 red. Link 10MHz |
| Application | Non Critical Infrastructure | Critical Infrastructure 4 x Antenne TX + 10MHz or 4 x Antenna RX + 10MHz |
Critical Infrastructure Antenne TX path + 10MHz or Antenna RX path + 10MHz |
Critical Infrastructure 4 x Antenne TX + 10MHz and 4 x Antenna RX + 10MHz |
Critical Infrastructure Full TX/RX antenna support 4 x TX redundant 4 x RX redundant 4 x TX Monitoring Antenna |
| RF Connectors I/O Ports | 16 Main RF-Ports 2 Main RF-Ports |
4x1:1 / 4 Main RF-Ports | 4x2:1 / 8 Main RF-Ports 2 Backup Ports |
2x4:1 / 8 Main RF-Ports 2 Backup Ports |
8 Main RF-Ports 4 Single Ports |
| RF-Connector Type SMA 50Ohm | Yes | Yes | Yes | Yes | Yes |
| RF-Connector other Type | On request | On request | On request | On request | On request |
| Features | All Modules hot swap | All Modules hot swap Free/mixed configurable |
All Modules hot swap Free/mixed configurable |
All Modules hot swap Free/mixed configurable |
All Modules hot swap Free/mixed configurable |
