Microwave Filter Company

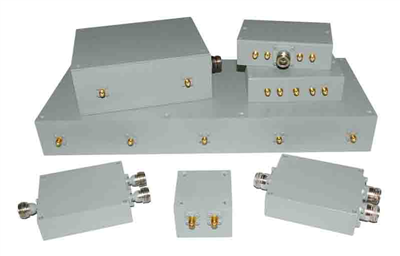

Microwave Filter Company 2PC-1520-0100-SF/SF High Power Combiners
Product Code:
2PC-1520-0100-SF/SF
Condition:
New
Weight:
1.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
MFC’s power combiners/dividers are ideal for use in defense, aerospace, wireless and wired communication applications in the military & commercial sectors.
Typical Application: Wireless Base Station – where the transmission signal needs to be divided up to feed multiple antennas for omni-directional signal distribution.
Features:
- High Isolation
- Excellent phase and amplitude balance
- Low insertion loss
- High power handling capability
Benefits:
- Low non-linear signal distortion
- Reduce the number of amplifiers & lower investment
| Product Specifications | |
| Frequency Range (MHz) | 1500-2000 |
| Insertion Loss (dB Max) | 0.8 |
| Isolation (dB Min) | 20 |
| VSWR | 1.50.1 |
| Avg. Power (Watts) | 100 |
| Phase Balance ±/° (Max) | 10 |
| Amplitude Balance (dB Max) | 1 |
| Connectors | SMA-female/SMA-female |
5 customers are viewing this product
Details
MFC’s power combiners/dividers are ideal for use in defense, aerospace, wireless and wired communication applications in the military & commercial sectors.
Typical Application: Wireless Base Station – where the transmission signal needs to be divided up to feed multiple antennas for omni-directional signal distribution.
Features:
- High Isolation
- Excellent phase and amplitude balance
- Low insertion loss
- High power handling capability
Benefits:
- Low non-linear signal distortion
- Reduce the number of amplifiers & lower investment
| Product Specifications | |
| Frequency Range (MHz) | 1500-2000 |
| Insertion Loss (dB Max) | 0.8 |
| Isolation (dB Min) | 20 |
| VSWR | 1.50.1 |
| Avg. Power (Watts) | 100 |
| Phase Balance ±/° (Max) | 10 |
| Amplitude Balance (dB Max) | 1 |
| Connectors | SMA-female/SMA-female |
