RF Components

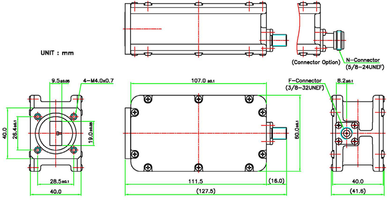

 KEY SPECIFICATIONSBandKu-BandInput Frequency Band 110.70 - 12.75 GHzLO Frequency 19.75 GHzLO Stability±10 kHzLO TypePLLNoise Figure Max1.0 dBNoise Figure Typ0.9 dBNumber Of Onboard LosSingle-BandOutput Frequency Band 1950 - 3000 MHzRF...

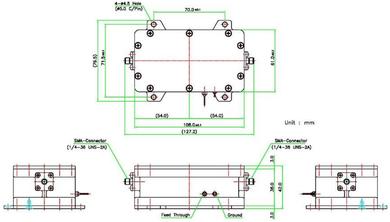

 KEY SPECIFICATIONSBandX-BandExternal Ref Freq10 MHz, -5 to +5 dBm, Injected Output ConnectorInput Frequency Band 18.0 - 9.0 GHzLO Frequency 17.05 GHzLO StabilityExt RefNoise Figure13 dB max. at room temp.Number Of Onboard LosSingle-BandOutput...

 KEY SPECIFICATIONSBandX-BandExternal Ref Freq10 MHz, -5 to +5 dBm, Injected Output ConnectorInput Frequency Band 17.0 - 8.0 GHzLO Frequency 16.05 GHzLO StabilityExt RefNoise Figure13 dB max. at room temp.Number Of Onboard LosSingle-BandOutput...

 KEY SPECIFICATIONSBandKa-BandExternal Ref Freq10 MHz, -5 to +5 dBmInput Frequency Band 1950 - 1950 MHzLO Frequency 128.05 GHzOutput Frequency Band 129.00 - 30.00 GHzOutput Power Rated10 WRF SPECIFICATIONSGain Adjust Range20 dB (Step: 0.25 dB)Gain...

 KEY SPECIFICATIONSBandX-BandInput Frequency Band 18.0 - 8.4 GHzNoise Figure Max1.0 dBRF SPECIFICATIONSConversion Gain Min40 dB Gain Flatness3 dB p-p max.Gain Ripple (At Per 36Mhz)1 dB p-p max.Input VSWR1.4 : 1 max.OIP3+ 28 dBm min.Output P1db+ 20...

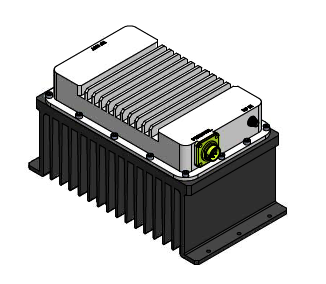

 KEY SPECIFICATIONSBandS-BandNumber Of Onboard LosSingle-BandOutput Frequency Band 12.0 - 2.6 GHzOutput Power Rated30WRF SPECIFICATIONS2Nd Harmonics-20 dBc3Rd Harmonics-18 dBcEfficiency PAE45%Gain54 dB typ.Gain Flatness (Over Full Band)2.5 dB p-p...
