RF Components

 KEY SPECIFICATIONSBandLow Ku-BandExternal Ref Freq10 MHz (sine-wave), - 5 to +5 dBmLO Frequency11.80 GHzOperating IF Frequency950 - 1450 MHzOperating RF Frequency12.75 - 13.25 GHzOutput Power Rated8WRF SPECIFICATIONSAM/PM Conversion1.0˚/dB max. at...

 PHYSICAL SPECIFICATIONSMast Diameter4.5" ODMast Height3'Product Dimensions (Lxwxh)131 x 131 x 51.7 in.

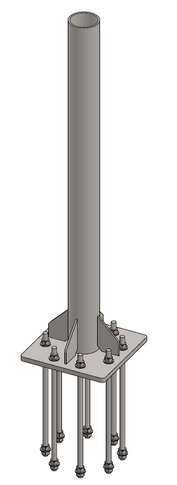

 PHYSICAL SPECIFICATIONSMast Diameter4.5" ODMast Height4'Product Dimensions (Lxwxh)48 x 12 x 12 inch

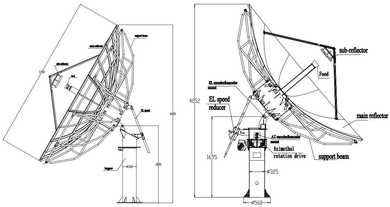

 We recommend purchasing the corresponding Antenna Control System along with the motorized Earth Station, unless you plan to develop the control system yourself. Please note that the Antenna Control System is sold separately at an additional cost...

 KEY SPECIFICATIONSBandC-BandInput Frequency Band 13.95 - 4.20 GHzProduct FamilyC-Band BPFRejection≥60dB @3400-3770 Mhz ≥25dB @4230-4300 MhzRF SPECIFICATIONSInsertion Loss In Band0.5 dB max.VSWR1.4: 1 max.INTERFACE SPECIFICATIONSRF Input...

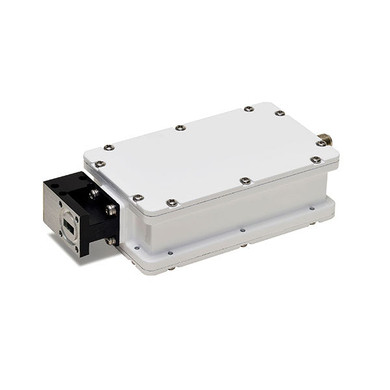

 KEY SPECIFICATIONSBandKa-BandExternal Ref Freq10 MHz (sine-wave), - 10 to 0 dBmInput Frequency Band 121.20 - 22.20 GHzLO Frequency 120.25 GHzLO TypePLLNoise Figure Max1.5 dBNoise Figure Typ1.4 dBNumber Of Onboard LosSingle-BandOutput Frequency Band...

 KEY SPECIFICATIONSBandKa-BandExternal Ref Freq10 MHz (sine-wave), - 10 to 0 dBmInput Frequency Band 121.20 - 22.20 GHzLO Frequency 120.25 GHzLO TypePLLNoise Figure Max1.5 dBNoise Figure Typ1.4 dBNumber Of Onboard LosSingle-BandOutput Frequency Band...

 KEY SPECIFICATIONSBandKa-BandExternal Ref Freq10 MHz (sine-wave), - 10 to 0 dBmInput Frequency Band 119.20 - 20.20 GHzLO Frequency 118.25 GHzLO TypePLLNoise Figure Max1.5 dBNoise Figure Typ1.4 dBNumber Of Onboard LosSingle-BandOutput Frequency Band...
