Microwave Filter Company

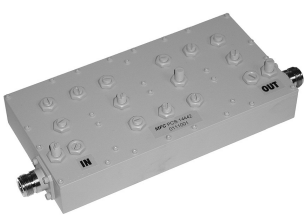

Microwave Filter Company 14442 PCS Receive Filter
Product Code:
14442-X
Condition:
New
Weight:
1.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Ideal for use in broadcast-dense locations, this bandpass filter provides superior isolation from virtually all undesired transmissions ... from AM to WiMax!
| Product Specifications | |
| Application | Receive |
| Passband Receive | 1850-1910 MHz |
| Passband Insertion Loss | 1.0 dB Max |
| Passband Return Loss | 18 dB Min |
| Rejection | 60 dB Min, 70 dB Min, 55 dB Min |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | Up to 90%, Non-Condensing |
| Impedance | 50 ohms |
| Connectors | N Female |
5 customers are viewing this product
Details
Ideal for use in broadcast-dense locations, this bandpass filter provides superior isolation from virtually all undesired transmissions ... from AM to WiMax!
| Product Specifications | |
| Application | Receive |
| Passband Receive | 1850-1910 MHz |
| Passband Insertion Loss | 1.0 dB Max |
| Passband Return Loss | 18 dB Min |
| Rejection | 60 dB Min, 70 dB Min, 55 dB Min |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | Up to 90%, Non-Condensing |
| Impedance | 50 ohms |
| Connectors | N Female |
