Norsat International Inc.

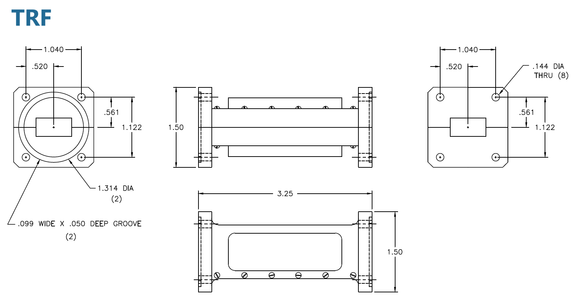

Norsat OMT-100003 Low Ku-Band OMT Transmit Reject Filter
Product Code:
OMT-100003
Condition:
New
Availability:
22 pcs
Weight:
0.39 KGS
Width:
4.90
(cm)
Height:
10.70
(cm)
Depth:
6.50
(cm)
$0.00

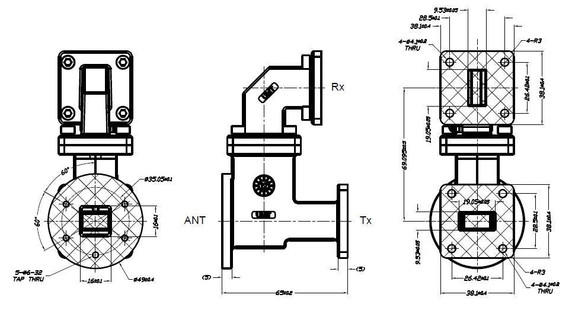

An integrated three port assembly, combining an OMT with a transmit reject filter and elbow. It is small, lightweight and easy to install. The OMT is designed for linear orthogonal polarization. The combined OMT and filter assembly provides very high isolation and is suitable for a large variety of applications in VSAT ground terminals.
The unit has a WC 75 flange at the feedhorn port and WR 75 cover flanges at the transmitter LNB ports.
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| LNB Port Frequency Range | 10.70 - 11.75 GHz |
| Transmitter Port Frequency Range | 12.75 - 14.50 GHz |
| RF SPECIFICATIONS | |
| Feed Port To LNB Port Insertion Loss Max | 0.3 dB |
| LNB Port Cross Polarization Min | 40 dB |
| LNB Port VSWR | 1.25 : 1 max. |
| Output VSWR | 2.0 : 1 max. |
| Transmitter Port Cross Polarization Min | 40 dB |
| Transmitter Port To Feed Port Insertion Loss Max | 0.3 dB |
| Transmitter Port To LNB Port Isolation At Tx Frequency Min | 85 dB |
| Transmitter Port VSWR | 1.25 : 1 max. |
| INTERFACE SPECIFICATIONS | |
| Feedhorn Port Waveguide | WC75 with threaded holes |
| LNB Port Waveguide | WR75 with through holes |
| Transmitter Port Waveguide | WR75 with through holes |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 0.107 m |
| Product Length | 0.065 m |
| Product Weight | TBD |
| Product Width | 0.049 m |
| ADDITIONAL INFORMATION | |
| Aluminium Content | - |
| Aluminium COO | - |
| Aluminium Total Value | - |
| Country Of Origin | Made in United States of America |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | - |
| Unit Package Height | - |
| Unit Package Length | - |
| Unit Package Width | - |
| Warranty | 1 year |
