RF-Design
RF-Design SLC4124 Standard QUAD LNB/LNA Controller
Product Code:
SLC4124
Condition:
New
Weight:
3.00 KGS
Width:
48.30
(cm)
Height:
4.45
(cm)
Depth:
28.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The SLC4124 is a standard LNB power supply unit featuring four internal Bias-Tees/Directional couplers with 13V, 18V and 22kHz supply for max. 4 LNB´s. The unit allows to configure all LNB´s individually, also via Web-Interface.

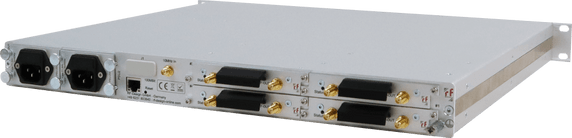

The SLC4124 is available in a 1RU/19" rack mount chassis and also provides 1:1 hot swappable power supply redundancy. Furthermore, the unit offers RF power monitoring for every BiasTee via a 20dB measuring port located at the front of the unit.

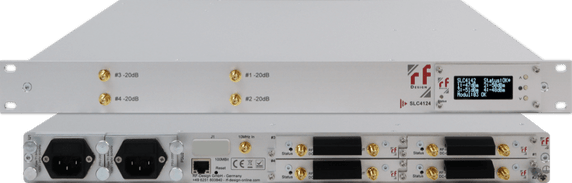

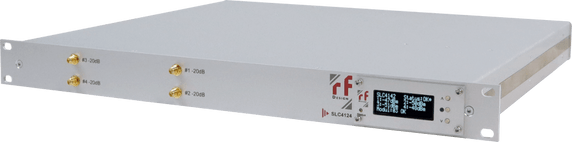

Local control can be done with front panel LC-Display, keypads and LED´s while remote access, monitoring and control can be done via 10/100Mbit LAN-Interface SNMP and WebGui.
The unit is ideally suited for LNB supply purposes in Satellite-, broadcast and broadband communication architectures like Teleports, Earth Stations, broadcast facilities and cable headend platforms.
5 customers are viewing this product
Details
The SLC4124 is a standard LNB power supply unit featuring four internal Bias-Tees/Directional couplers with 13V, 18V and 22kHz supply for max. 4 LNB´s. The unit allows to configure all LNB´s individually, also via Web-Interface.
The SLC4124 is available in a 1RU/19" rack mount chassis and also provides 1:1 hot swappable power supply redundancy. Furthermore, the unit offers RF power monitoring for every BiasTee via a 20dB measuring port located at the front of the unit.
Local control can be done with front panel LC-Display, keypads and LED´s while remote access, monitoring and control can be done via 10/100Mbit LAN-Interface SNMP and WebGui.
The unit is ideally suited for LNB supply purposes in Satellite-, broadcast and broadband communication architectures like Teleports, Earth Stations, broadcast facilities and cable headend platforms.
