RF-Design
RF-Design FiberLinkplus 1:1 redundant
Condition:
New
Availability:
YES
Weight:
7.00 KGS
Width:
48.26
(cm)
Height:
13.20
(cm)
Depth:
30.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545

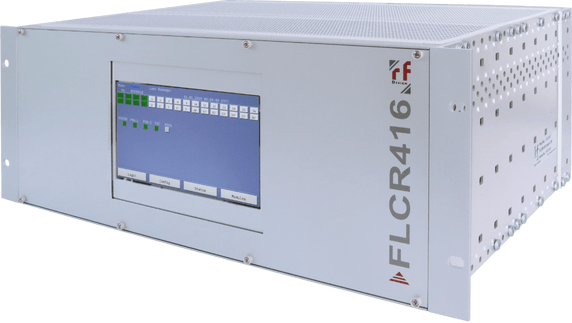

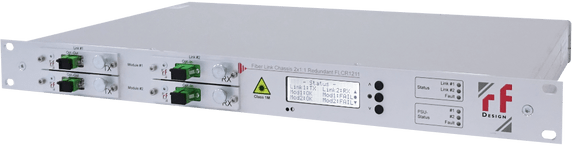

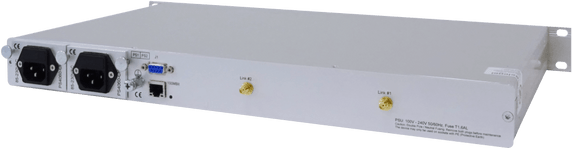

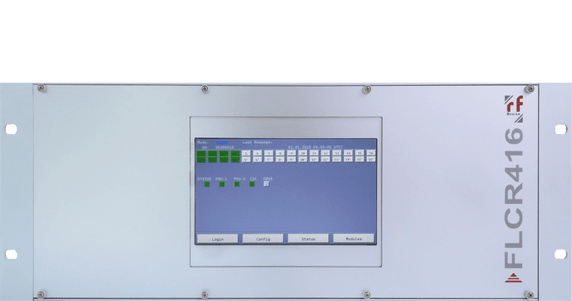

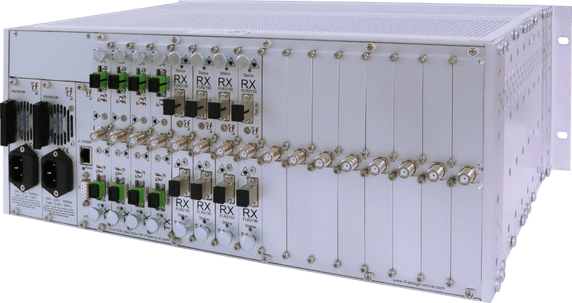

The FiberLinkplus for 1:1 redundant optical operation comes in 1RU/19″ or 4RU/19″ rack mount chassis allowing flexible, high quality and absolute secure optical transmission of max. 16 signals (L-Band or extended L-Band) over a distance of up to 20 km. The redundancy switching can be realized manually via the front panel LC-Display/touchscreen and remotely via the Ethernet-Interface (WebGUI, SNMP). 1:1 redundant dual power-supply, hot-swap TX/RX modules, variable gain control, RF power-monitoring and switchable LNB-supply (upon request) is also supported. It comes with a front side LC-Display/keypads or a 5,7″ touchscreen display for local configuration as well as a rear-side Ethernet-Interface for remote configuration (WebGUI, SNMP).
Features & Benefits
-
Space saving 1RU/19″ or 4RU/19″ design
-
Stable and secure signal transmission (L-Band or extended L-Band)
-
Scalable 1:1 TX/RX redundancy
-
Insertion of max. 16 ProLink TX and/or RX modules per chassis
-
Hot-swappable TX/RX modules
-
Supports mixed TX/RX configuration
-
Variable gain control
-
RF power monitoring
-
Switchable LNB-supply (upon request)
-
Local and remote configuration
-
Status LED´s
-
1:1 redundant dual power supply
Once an active TX or RX module fails, the corresponding hot-standby TX or RX module becomes active thus ensuring an almost interference-free signal transmission at any time. Additionally, the system comes with beneficial features such as Laser/Link
monitoring, status LED ́s at any TX/RX module, variable gain control, RF power monitoring, switchable LNB-supply*, hot-swappable TX/RX modules and 1:1 redundant dual power supply. Configuration and monitoring is possible via the front panel LC-
Display or 7" touchscreen while remote configuration is available via its Ethernet-Interface (WebGUI, SNMP). This professional 1:1 redundant RF-over-Fiber system stands for perfect RF performance, secure signal distribution and is perfectly
suited for Teleports, Satellite Earth Stations, Broadcasting and Cable/IPTV operations.
5 customers are viewing this product
Details
The FiberLinkplus for 1:1 redundant optical operation comes in 1RU/19″ or 4RU/19″ rack mount chassis allowing flexible, high quality and absolute secure optical transmission of max. 16 signals (L-Band or extended L-Band) over a distance of up to 20 km. The redundancy switching can be realized manually via the front panel LC-Display/touchscreen and remotely via the Ethernet-Interface (WebGUI, SNMP). 1:1 redundant dual power-supply, hot-swap TX/RX modules, variable gain control, RF power-monitoring and switchable LNB-supply (upon request) is also supported. It comes with a front side LC-Display/keypads or a 5,7″ touchscreen display for local configuration as well as a rear-side Ethernet-Interface for remote configuration (WebGUI, SNMP).
Features & Benefits
-
Space saving 1RU/19″ or 4RU/19″ design
-
Stable and secure signal transmission (L-Band or extended L-Band)
-
Scalable 1:1 TX/RX redundancy
-
Insertion of max. 16 ProLink TX and/or RX modules per chassis
-
Hot-swappable TX/RX modules
-
Supports mixed TX/RX configuration
-
Variable gain control
-
RF power monitoring
-
Switchable LNB-supply (upon request)
-
Local and remote configuration
-
Status LED´s
-
1:1 redundant dual power supply
Once an active TX or RX module fails, the corresponding hot-standby TX or RX module becomes active thus ensuring an almost interference-free signal transmission at any time. Additionally, the system comes with beneficial features such as Laser/Link
monitoring, status LED ́s at any TX/RX module, variable gain control, RF power monitoring, switchable LNB-supply*, hot-swappable TX/RX modules and 1:1 redundant dual power supply. Configuration and monitoring is possible via the front panel LC-
Display or 7" touchscreen while remote configuration is available via its Ethernet-Interface (WebGUI, SNMP). This professional 1:1 redundant RF-over-Fiber system stands for perfect RF performance, secure signal distribution and is perfectly
suited for Teleports, Satellite Earth Stations, Broadcasting and Cable/IPTV operations.
Download
| Download Name | |
| FiberLinkplus 1:1 redundant Data Sheet | |
