RF-Design FiberLinkplus ODA System Outdoor RF-over-Fiber System Standard, 1:1, N+1 & N+2

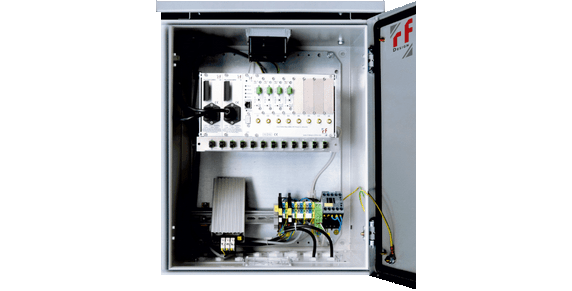

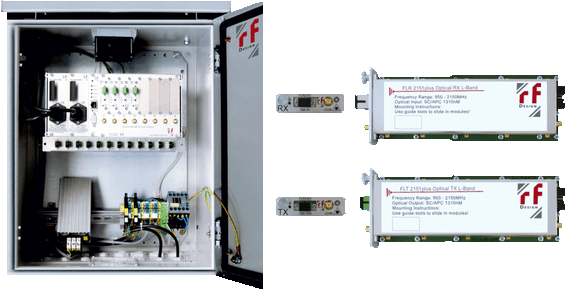

The FiberLinkplus-ODA system is a compact and weatherproof (IP65 specified) modular-type outdoor application RF-over-Fiber outdoor enclosure system that can be populated with various optical TX/RX chassis allowing standard, 1:1 redundant as well as N+1 and/or N+2 redundant optical transmission. The system is designed to be mounted close to the antenna and made for flexible, high quality and secure optical transmission of RF signals (L-Band or extended L-Band) over a distance of up to 10 km. The system can hold up to 8 Transmit- or Receive Modules for standard operation also supporting various 1:1 as well as N+1 and N+2 redundant operation. The system furthermore features variable gain control, RF power monitoring, Laser/Link monitoring and switchable LNB-supply (for non-redundant & 1:1 redundant version only). This outdoor RF-over-Fiber system assures superior RF performance and stability and can be configured and monitored remotely via its Ethernet-Interface (WebGUI, SNMP).

The FiberLinkplus-ODA system is a versatile, space and cost-efficient outdoor optical transmission solution and perfectly suited for applications in Teleports, Satellite Earth Stations as well as Broadcast- and Broadband facilities.
