RF-Design
RF-Design FiberLinkplus not redundant System
Product Code:
9000953
Condition:
New
Availability:
YES
Weight:
5.00 KGS
Width:
55.00
(cm)
Height:
13.00
(cm)
Depth:
50.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545

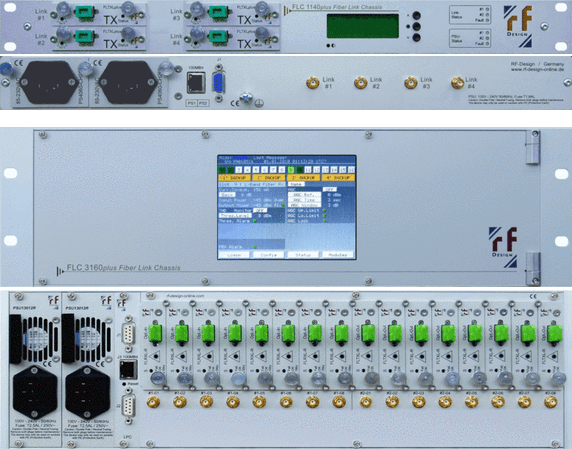

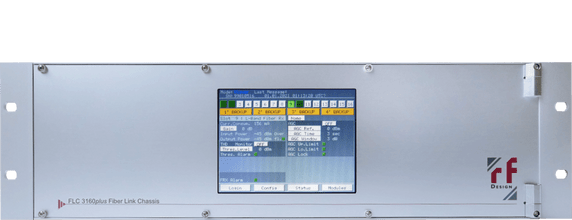

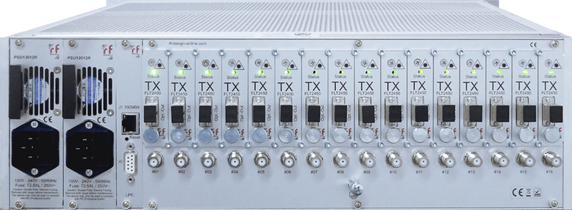

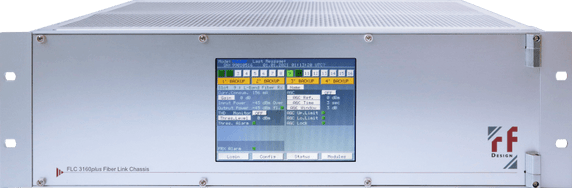

The FiberLinkplus RF-over-Fiber system for non-redundant optical transmission of RF signals is available in sizes of 1RU/19" & 3RU/19" rack mount design. and holds up to 4 optical TX/RX modules with the 1RU/19" chassis or up to 16 optical TX/RX modules with the 3RU/19" chassis. It features Laser/Link monitoring, status LED´s, variable gain control, RF power monitoring, switchable LNB-supply, hot-swappable TX/RX modules and 1:1 redundant dual power-supply as well as local or remote configuration and monitoring.
This professional RF-over-Fiber system stands for perfect RF performance as well as stable signal distribution and is perfectly suited for Teleports, Satellite Earth Stations, Broadcasting and Cable/IPTV operations.

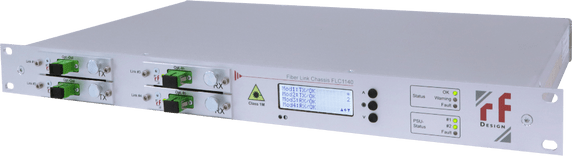

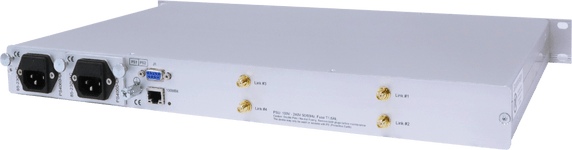

1RU/19" modular TX/RX chassis, 2 TX/RX slots, 2 RF coax I/O´s 50Ohm SMA(f), local configuration via LCDisplay/ keypads, remote configuration via Ethernet-Interface (WebGUI, SNMP), 1:1 redundant dual power-supply.
HS-Code: 85437030
Dimension Net: each,
Weight Net: 4,00Kg each,
Packing: 1,00 x Box,
Dimension: 55x50x13cm each,
Gross Weight: 5,00Kg each,
Total-Weight: 5Kg,
ECCN: EAR99
Remark: Please see datasheet for other RF impedance &
connectors
| Features & Benefits | |
|---|---|
|
|
5 customers are viewing this product
Details
The FiberLinkplus RF-over-Fiber system for non-redundant optical transmission of RF signals is available in sizes of 1RU/19" & 3RU/19" rack mount design. and holds up to 4 optical TX/RX modules with the 1RU/19" chassis or up to 16 optical TX/RX modules with the 3RU/19" chassis. It features Laser/Link monitoring, status LED´s, variable gain control, RF power monitoring, switchable LNB-supply, hot-swappable TX/RX modules and 1:1 redundant dual power-supply as well as local or remote configuration and monitoring.
This professional RF-over-Fiber system stands for perfect RF performance as well as stable signal distribution and is perfectly suited for Teleports, Satellite Earth Stations, Broadcasting and Cable/IPTV operations.
1RU/19" modular TX/RX chassis, 2 TX/RX slots, 2 RF coax I/O´s 50Ohm SMA(f), local configuration via LCDisplay/ keypads, remote configuration via Ethernet-Interface (WebGUI, SNMP), 1:1 redundant dual power-supply.
HS-Code: 85437030
Dimension Net: each,
Weight Net: 4,00Kg each,
Packing: 1,00 x Box,
Dimension: 55x50x13cm each,
Gross Weight: 5,00Kg each,
Total-Weight: 5Kg,
ECCN: EAR99
Remark: Please see datasheet for other RF impedance &
connectors
| Features & Benefits | |
|---|---|
|
|
Download
| Download Name | |
| FiberLinkplus not redundant System Data Sheet | |
