Radeus Labs

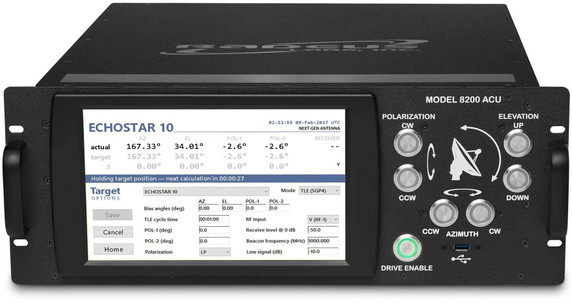

Radeus Labs Model 8200 Antenna Control Unit
Condition:
New
Availability:
YES
Weight:
9.07 KGS
Width:
48.26
(cm)
Height:
17.78
(cm)
Depth:
48.26
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
Model 8200 ACU
The commercial industry’s most-advanced antenna control system meets the requirements of retrofits* as well as new installations.
Features
- Touchscreen controls for all operations
- Efficient, intuitive graphical user interface
- Hardware jog buttons with LED indicators
- Data and parameters secured in nonvolatile storage
- Innovative setup wizard eases installation
- Secure TeamViewer integration for remote and shared ACU operation
- Field-proven in critical applications
Modes of Operation
| Mode | Description |
| Step Track | Advanced algorithm for periodic or signal-level-triggered scans to peak the signal level |
| Predictive Track | Tracks targets based on an orbital model developed from prior Step Track data points |
| NORAD TLE | Automated tracking based on NORAD two-line element sets |
| Intelsat (IESS-412) | Tracking derived from Intelsat 11-element parameter sets |
| TLE with Steptrack | Track using TLE as a base model but add periodic Step Tracks to correct for offsets over time |
| IESS-412 with Steptrack | Tracking with Intelsat model, with added Step Track to correct for offsets over time |
| Manual Jog | Dedicated front-panel antenna jog controls |
| Move to Longitude | Points the antenna to AZ and EL angles determined by the longitudinal orbital slot |
| Move to Look Angles | Points the antenna to user-supplied AZ, EL and POL angles |
Options
- Fiber optic IFL
- IRIG B timecode receiver
- Integrated beacon receiver (L, Ku, Ka, X, S, and C bands supported)
- 25-bit optical encoders and or size-11 resolvers
- CP/LP support
