Radeus Labs
Radeus Labs RL3430 Digital Tracking Receiver
Condition:
New
Availability:
YES
Weight:
4.50 KGS
Width:
48.26
(cm)
Height:
4.45
(cm)
Depth:
40.64
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
The Model RL3430 is the same reliable beacon receiver you can depend on with a new Non-coherent, FFT detection method. Full L-band range of 930 to 2300 MHz, Digital Level reference setting, Ethernet connectivity with M&C control interface, and power up temperature compensation for rapid signal acquisition. Frequency selection on 10 kHz steps may be accomplished from the front panel or via remote control. Software selectable pre-detection noise bandwidth facilitates accurate tracking at very low C/N levels. Accu-track search and acquire AFC feature with several search bandwidths up to ± 800 kHz!
★ Non-coherent, FFT detection method
★ Larger 2x20 display
★ Ethernet connectivity with M&C control interface
★ 10 kHz Tuning steps
The output of the Beacon Receiver is a DC voltage proportional to the input signal level to facilitate both antenna tracking control and automatic uplink power control. A Loss of Carrier indicator is provided in the event the tracking signal is lost. Form "C" relay contacts provide an external Loss of Carrier Alarm. A front panel LCD or network-based GUI displays operating frequency, relative signal level, carrier lock or alarm, and input level.

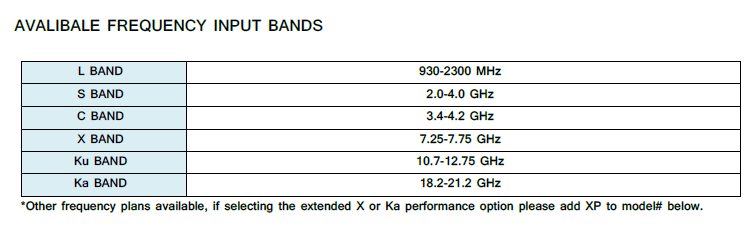

Specifications
Input Frequency 930 - 2300 MHz
Input Level -40 to -100 dBm typical
Level Adjust Digital, 0.5 dB steps
Tracking Slope 0.5 V/dB
Tracking Linearity ±0.25 dB
Frequency Selection 10 kHz steps
Min. input level for Lock -115 dBm typical
RF Input Connector Type “N” female, 50 ohm connector
Sensitivity (C/No) 40 dB-Hz
Tracking Response 0 to +10 VDC over 20 dB input range
Alarms Form-C relay contacts
Pre-detection Bandwidths 15 kHz, 50 kHz, software selectable
Accu-Track searchable bandwidths: +/- 50kHz, +/-75kHz, +/-100kHz, +/-150kHz, +/-200kHz, +/-250kHz,
+/-300kHz, +/-400kHz, +/-500kHz, +/-600kHz, +/-700kHz, +/-800kHz
Remote M&C RS-232 or RS-422/485 DB-9 Female
Ethernet 10/100 RJ-45 Jack
MECHANICAL:
Output Connector Modular socket & plug
Dimensions 1 RU, 19" x 16" x 1.75"
POWER:
Prime Input Power 90-260 VAC, 47-63 Hz, auto-sensing, 45 Watts max
LNB Power +24 Volts @ 1 Available on center conductor w current monitoring
Selectable In/Out, other power options available***
5 customers are viewing this product
Details
The Model RL3430 is the same reliable beacon receiver you can depend on with a new Non-coherent, FFT detection method. Full L-band range of 930 to 2300 MHz, Digital Level reference setting, Ethernet connectivity with M&C control interface, and power up temperature compensation for rapid signal acquisition. Frequency selection on 10 kHz steps may be accomplished from the front panel or via remote control. Software selectable pre-detection noise bandwidth facilitates accurate tracking at very low C/N levels. Accu-track search and acquire AFC feature with several search bandwidths up to ± 800 kHz!
★ Non-coherent, FFT detection method
★ Larger 2x20 display
★ Ethernet connectivity with M&C control interface
★ 10 kHz Tuning steps
The output of the Beacon Receiver is a DC voltage proportional to the input signal level to facilitate both antenna tracking control and automatic uplink power control. A Loss of Carrier indicator is provided in the event the tracking signal is lost. Form "C" relay contacts provide an external Loss of Carrier Alarm. A front panel LCD or network-based GUI displays operating frequency, relative signal level, carrier lock or alarm, and input level.
Specifications
Input Frequency 930 - 2300 MHz
Input Level -40 to -100 dBm typical
Level Adjust Digital, 0.5 dB steps
Tracking Slope 0.5 V/dB
Tracking Linearity ±0.25 dB
Frequency Selection 10 kHz steps
Min. input level for Lock -115 dBm typical
RF Input Connector Type “N” female, 50 ohm connector
Sensitivity (C/No) 40 dB-Hz
Tracking Response 0 to +10 VDC over 20 dB input range
Alarms Form-C relay contacts
Pre-detection Bandwidths 15 kHz, 50 kHz, software selectable
Accu-Track searchable bandwidths: +/- 50kHz, +/-75kHz, +/-100kHz, +/-150kHz, +/-200kHz, +/-250kHz,
+/-300kHz, +/-400kHz, +/-500kHz, +/-600kHz, +/-700kHz, +/-800kHz
Remote M&C RS-232 or RS-422/485 DB-9 Female
Ethernet 10/100 RJ-45 Jack
MECHANICAL:
Output Connector Modular socket & plug
Dimensions 1 RU, 19" x 16" x 1.75"
POWER:
Prime Input Power 90-260 VAC, 47-63 Hz, auto-sensing, 45 Watts max
LNB Power +24 Volts @ 1 Available on center conductor w current monitoring
Selectable In/Out, other power options available***
Download
| Download Name | |
| RL3430 Data Sheet | |
