Radeus Labs

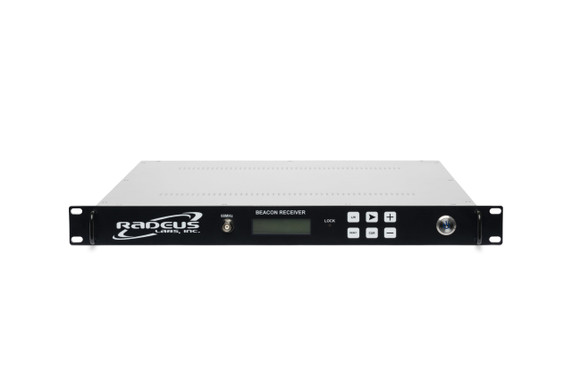

Radeus Labs RL3500 Digital Beacon Receiver
Product Code:
RL3500
Condition:
New
Availability:
YES
Weight:
4.50 KGS
Width:
48.26
(cm)
Height:
4.45
(cm)
Depth:
40.64
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
The Model RL3500 is the latest release in our line of high-performance Beacon Receivers. The 3500 is a fully synthesized, hybrid analog/digital beacon receiver blending state of the art with proven reliability. With an L-band range of 930 to 2300 MHz, Digital Level reference setting, serial M&C interface, and power up temperature compensation for rapid signal acquisition, the 3500 provides some high-end features in a modest single rack form factor. Further the 3500 has a 1kHz tuning resolution, a wide range of software selectable detection bandwidths and Accu-track searchable bandwidths to accommodate frequency drift in tracking beacons.
- Non-coherent, FFT detection method
- BNC reference output on front panel
- 5G ready, multiple acquisition bandwidths to reduce impact of ranging and modulation
- Output smoothing to minimize effects of carrier amplitude variance
- Larger 2x20 display
- Ethernet connectable GUI
- Serial M&C control interface for remote control
- Front panel selectable LOs for use with an external LNB/BDC
- 1 kHz tuning steps
The output of the Beacon Receiver is a DC voltage proportional to the input signal level to facilitate both antenna control and uplink power control applications. “Loss of Carrier” indication is provided in the event the tracking signal is lost via form "C" relay contacts. A larger front panel LCD or network-based GUI displays the beacon frequency, relative signal level, carrier lock or alarm, and input signal level.
| Specification | |
| Input Frequency | 930 - 2300 MHz |
| Input Level | -40 to -100 dBm typical |
| Level Adjust | Digital, 0.5 dB steps |
| Tracking Slope | 0.25, 0.5, 1.0 V/dB, software selectable |
| Tracking Linearity | ±0.25 dB |
| Frequency Selection | 1 kHz steps |
| Min. Input Level for Lock | -115 dBm |
| RF Input Connector | Up to qty. 4 type “N” female, 50 ohm connectors |
| Sensitivity (C/NO ) | 40 dB-Hz |
| Tracking Response | 0 to +10 VDC over 20 dB input range |
| Alarms | Form-C relay contacts |
| Pre-detection Bandwidths | 2.5, 4, 15, 25, 50, 280 kHz, software selectable Ethernet 10/100 RJ-45 Jack |
| AccuTrack Searchable Bandwidths | +/- 50kHz, +/-75kHz, +/-100kHz, +/-150kHz, +/-200kHz, +/-250kHz, +/-300kHz, +/-400kHz, +/-500kHz, +/-600kHz, +/-700kHz, +/-800kHz |
| Remote M&C | RS-232 or RS-422/485 DB-9 Female |
| MECHANICAL: | |
| Output Connector | Modular Socket & Plug |
| Dimensions | 1 RU, 19” x 16” x 1.75” |
| POWER: | |
| Prime Input Power | 90-260 VAC, 47-63 Hz, Auto-sensing, 45 Watts max |
| LNB Power | +24 Volts @ 1 Amp available on center conductor with current monitoring. Selectable In/Out(1) |
| L-Band | 930 - 2300 MHz |
| C-Band | 3.4 - 4.2 MHz |
| Ku-Band | 10.70 - 12.75 MHz |
| For additional options, contact customer service: (1) Other Power Options |
|
5 customers are viewing this product
Details
The Model RL3500 is the latest release in our line of high-performance Beacon Receivers. The 3500 is a fully synthesized, hybrid analog/digital beacon receiver blending state of the art with proven reliability. With an L-band range of 930 to 2300 MHz, Digital Level reference setting, serial M&C interface, and power up temperature compensation for rapid signal acquisition, the 3500 provides some high-end features in a modest single rack form factor. Further the 3500 has a 1kHz tuning resolution, a wide range of software selectable detection bandwidths and Accu-track searchable bandwidths to accommodate frequency drift in tracking beacons.
- Non-coherent, FFT detection method
- BNC reference output on front panel
- 5G ready, multiple acquisition bandwidths to reduce impact of ranging and modulation
- Output smoothing to minimize effects of carrier amplitude variance
- Larger 2x20 display
- Ethernet connectable GUI
- Serial M&C control interface for remote control
- Front panel selectable LOs for use with an external LNB/BDC
- 1 kHz tuning steps
The output of the Beacon Receiver is a DC voltage proportional to the input signal level to facilitate both antenna control and uplink power control applications. “Loss of Carrier” indication is provided in the event the tracking signal is lost via form "C" relay contacts. A larger front panel LCD or network-based GUI displays the beacon frequency, relative signal level, carrier lock or alarm, and input signal level.
| Specification | |
| Input Frequency | 930 - 2300 MHz |
| Input Level | -40 to -100 dBm typical |
| Level Adjust | Digital, 0.5 dB steps |
| Tracking Slope | 0.25, 0.5, 1.0 V/dB, software selectable |
| Tracking Linearity | ±0.25 dB |
| Frequency Selection | 1 kHz steps |
| Min. Input Level for Lock | -115 dBm |
| RF Input Connector | Up to qty. 4 type “N” female, 50 ohm connectors |
| Sensitivity (C/NO ) | 40 dB-Hz |
| Tracking Response | 0 to +10 VDC over 20 dB input range |
| Alarms | Form-C relay contacts |
| Pre-detection Bandwidths | 2.5, 4, 15, 25, 50, 280 kHz, software selectable Ethernet 10/100 RJ-45 Jack |
| AccuTrack Searchable Bandwidths | +/- 50kHz, +/-75kHz, +/-100kHz, +/-150kHz, +/-200kHz, +/-250kHz, +/-300kHz, +/-400kHz, +/-500kHz, +/-600kHz, +/-700kHz, +/-800kHz |
| Remote M&C | RS-232 or RS-422/485 DB-9 Female |
| MECHANICAL: | |
| Output Connector | Modular Socket & Plug |
| Dimensions | 1 RU, 19” x 16” x 1.75” |
| POWER: | |
| Prime Input Power | 90-260 VAC, 47-63 Hz, Auto-sensing, 45 Watts max |
| LNB Power | +24 Volts @ 1 Amp available on center conductor with current monitoring. Selectable In/Out(1) |
| L-Band | 930 - 2300 MHz |
| C-Band | 3.4 - 4.2 MHz |
| Ku-Band | 10.70 - 12.75 MHz |
| For additional options, contact customer service: (1) Other Power Options |
|
Download
| Download Name | |
| Radeus Labs RL3500 Digital Beacon Receiver Datasheet | |
