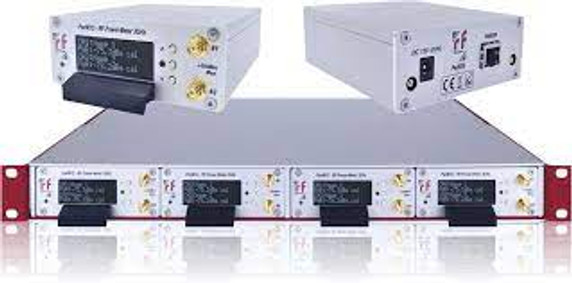

Dual Channel RF Power Meter, C-Band 9001031 / PwrM8G

The PwrMxG series represents various broadband power meter devices perfectly suited to measure RF carrier’s
power (e.g. satellite, cable, terrestrial). The PwrMxG is available either as a compact handheld unit or a modular
type 1RU/19” rack mount chassis that can hold up to 4 power meter modules (mixed population, hot-swappable).
The PwrMxG is a perfect solution for broadband monitoring applications, capable for simultaneous monitoring of
2 to 8 RF signals within a frequency range of 50MHz - 3000MHz (PwrM3G) and/or 50MHz - 8000MHz (PwrM8G).
The PwrMxG power meters provide a large dynamic range with high accuracy assuring excellent and precise RF
power monitoring at any time. Other beneficial features such as threshold monitoring/alarming, minimum and
maximum RF power monitoring and recording along with a user-friendly chart on the WebGUI that also displays the
different RF power values over a period of time (history recording) are also included. The PwrMxG has also a
function, which allows the user to compensate any offsets, for example for a directional coupler and/or to calibrate
the power meter at the desired frequency.

The PwrMxG has a front panel OLED display and keypads allowing easy local configuration and RF monitoring.
A rear side Ethernet-Interface allows remote configuration and monitoring (WebGUI, SNMP).

Dual Channel RF Power Meter, C-Band 50MHz - 8GHz, 60dB dynamic range, OLED display, status LED, keypads, Ethernet
Interface (WebGUI, SNMP).
HS-Code: 90303370
Dimension Net: each,
Weight Net: 1Kg each,
Packing: 1,00 x Box,
Dimension: 30x20x10cm each,
Gross Weight: 2Kg each,
Total-Weight: 2Kg,
ECCN: EAR99

FEATURES & BENEFITS
Broadband frequency range 50MHz – 3GHz (PwrM3G) or 50MHz – 8GHz* (PwrM8G)*
Available as a compact handheld module, also for integration into a 4-Slot 1RU/19” chassis
Supports mixed population of PwrM3G (3GHz) and/or PwrM8G (8GHz) within 1RU/19” chassis
Hot swappable and easy replaceable power meter modules in 1RU/19” chassis
1RU/19” chassis with integrated power supply and 4 port Ethernet switch
Simultaneous monitoring of 2 to max. 8 signals
Wide dynamic range
Threshold monitoring and alarming
Offset compensation for cables and directional couplers
Minimum & Maximum RF power monitoring and recording
Calibration feature at the desired frequency
WebGUI chart displays different RF power values (history recording)
Local monitoring & configuration via front panel OLED Display/keypads
Remote monitoring & configuration via Ethernet-Interface (WebGUI, SNMP)
