RF-Design

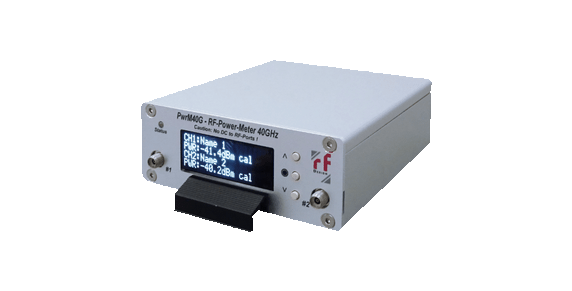

RF-Design PwrM40G Dual Channel RF Power Meter 50MHz to 40GHz
Product Code:
RF-PwrM40G
Condition:
New
Availability:
YES
Weight:
5.00 KGS
Width:
48.26
(cm)
Height:
4.40
(cm)
Depth:
28.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
The PwrM40G is a dual RF power meter unit operating at a frequency range within 50MHz – 40GHz thus perfectly suited for monitoring of RF carrier´s power (e.g. Ku-Band, Ka-Band…) at satellite and terrestrial RF infrastructures. The PwrM40G comes as a compact handheld but can also be integrated into an approbriate 1RU/19″ rack mount chassis that can hold up to 4 power meter modules allowing simultaneous monitoring of 2 to 8 RF signals.
Features & Benefits
- Broadband frequency range 50MHz – 40GHz
- Compact handheld or 1RU/19″ rack mount
- Simultaniouls monitoring of 2 to max. 8 signals
- Wide dynamic range
- Threshold monitoring and alarming
- Offset compensation for cables and directional couplers
- Min. and max. RF power monitoring and recording
- Supports calibration with the desired frequency
- Local and remote configuration and monitorinig (OLED display/keypads, WebGUI, SNMP)
- Front panel Status LED´s
5 customers are viewing this product
Details
The PwrM40G is a dual RF power meter unit operating at a frequency range within 50MHz – 40GHz thus perfectly suited for monitoring of RF carrier´s power (e.g. Ku-Band, Ka-Band…) at satellite and terrestrial RF infrastructures. The PwrM40G comes as a compact handheld but can also be integrated into an approbriate 1RU/19″ rack mount chassis that can hold up to 4 power meter modules allowing simultaneous monitoring of 2 to 8 RF signals.
Features & Benefits
- Broadband frequency range 50MHz – 40GHz
- Compact handheld or 1RU/19″ rack mount
- Simultaniouls monitoring of 2 to max. 8 signals
- Wide dynamic range
- Threshold monitoring and alarming
- Offset compensation for cables and directional couplers
- Min. and max. RF power monitoring and recording
- Supports calibration with the desired frequency
- Local and remote configuration and monitorinig (OLED display/keypads, WebGUI, SNMP)
- Front panel Status LED´s
Download
| Download Name | |
| RF-Design PwrM40G Datasheet | |
