RF-Design

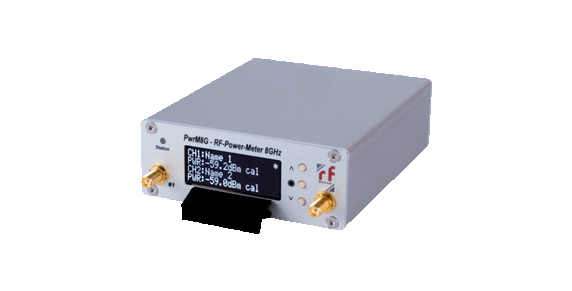

RF-Design PwrM8G Dual channel RF Power Meter 50MHz to 8GHz
Product Code:
RF-PwrM8G
Condition:
New
Availability:
YES
Weight:
5.00 KGS
Width:
48.26
(cm)
Height:
4.40
(cm)
Depth:
28.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
The Pwr8MG is a dual RF power meter unit operating at a frequency range within 50MHz – 8GHz thus perfectly suited for monitoring of RF carrier´s power (e.g. S-Band, C-Band) at satellite and terrestrial RF infrastructures. The PwrM8G comes as a compact handheld but can also be integrated into an approbriate 1RU/19″ rack mount chassis that can hold up to 4 power meter modules allowing simultaneous monitoring of 2 to 8 RF signals.
Features & Benefits
- Frequency range of 50MHz – 8GHz
- Compact handheld or 1RU/19″ rack mount
- Simultaniouls monitoring of 2 to max. 8 signals
- Wide dynamic range
- Threshold monitoring and alarming
- Offset compensation for cables and directional couplers
- Min. and max. RF power monitoring and recording
- Supports calibration with the desired frequency
- Local and remote configuration and monitorinig (OLED display/keypads, WebGUI, SNMP)
- Front panel status LED´s
5 customers are viewing this product
Details
The Pwr8MG is a dual RF power meter unit operating at a frequency range within 50MHz – 8GHz thus perfectly suited for monitoring of RF carrier´s power (e.g. S-Band, C-Band) at satellite and terrestrial RF infrastructures. The PwrM8G comes as a compact handheld but can also be integrated into an approbriate 1RU/19″ rack mount chassis that can hold up to 4 power meter modules allowing simultaneous monitoring of 2 to 8 RF signals.
Features & Benefits
- Frequency range of 50MHz – 8GHz
- Compact handheld or 1RU/19″ rack mount
- Simultaniouls monitoring of 2 to max. 8 signals
- Wide dynamic range
- Threshold monitoring and alarming
- Offset compensation for cables and directional couplers
- Min. and max. RF power monitoring and recording
- Supports calibration with the desired frequency
- Local and remote configuration and monitorinig (OLED display/keypads, WebGUI, SNMP)
- Front panel status LED´s
Download
| Download Name | |
| RF-Design PwrM8G Datasheet | |
