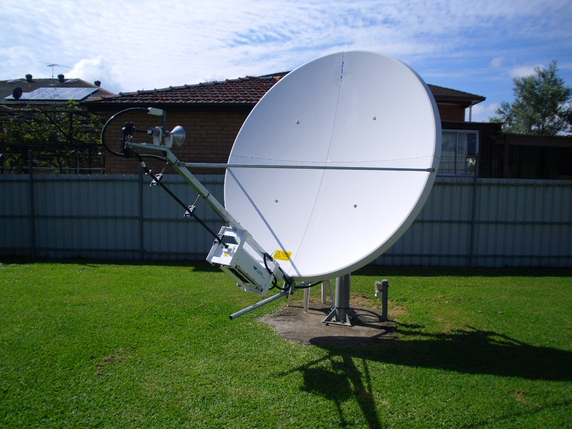

CPI 2.4 Meter Rx/Tx High Wind Antenna - C-Band Linear

Electrical

C-Band Linear

C-Band Circular

Ku-Band

Antenna Size

2.4 M (96.00 in.)

2.4 M (8 ft.)

2.4 M (96.00 in.)

Operating Frequency (GHz)  Receive

Transmit

3.625 - 4.20 GHz

5.85 - 6.425 GHz

3.625 - 4.20 GHz

5.85 - 6.425 GHz

10.70 - 12.75 GHz

13.75 - 14.50 GHz

Antenna Gain at Midband (± .2dB) Receive

Transmit

38.20 dBi

42.20 dBi

38.20 dBi

42.20 dBi

47.40 dBi

49.20 dBi

VSWR

1.3:1 max

1.3:1 max

Tx: 1.3:1 Max

Rx: 1.5:1 Max

Pattern Beamwidth                   -3dB

(in degrees at midband)                      -15dB

2.20° Rx 1.40° Tx

4.90° Rx 3.10° Tx

2.20° Rx 1.40° Tx

4.90° Rx 3.10° Tx

0.70° Rx 0.60° Tx

1.60° Rx 1.40° Tx

Sidelobe Envelope, Co-Pol (dBi) 100λ/D ≤θ ≤ 20°

20° <θ ≤ 26.3°

26.3° <θ ≤ 48°

θ < 48°

29 - 25 Logθ dBi

-3.5 dBi

32 - 25 Log θ dBi

-10 dBi (averaged).

29 - 25 Log θ dBi

-3.5 dBi

32 - 25 Log θ dBi

-10 dBi (averaged)

29 - 25 Log θ dBi

-3.5 dBi

32 - 25 Logθ dBi

-10 dBi (averaged)

Antenna Noise Temperature 5° Elevation

10° Elevation

20° Elevation

40° Elevation

55 K

47 K

43 K

43 K

61 K

53 K

49 K

49 K

85 K

78 K

73 K

70 K

Cross Polarization Isolation On Axis

Within 1.0 dB Beamwidth

> 30 dB

> 27 dB

Rx > 15 dB Tx > 17.7 dB Rx > 15 dB Tx > 17.7 dB

Rx > 30 dB Tx > 35 dB Rx > 25 dB Tx > 26 dB

Output Waveguide Interface

Rx CPR 229

Tx CPR 137 or Type N

Rx CPR 229

Tx CPR 137 or Type N

Rx WR75 Tx WR75

Mechanical

Reflector Material

Glass Fiber Reinforced Polyester SMC

Antenna Optics

Four Piece Offset, Prime Focus

Mast Pipe Size

6” SCH 80 Pipe (6.62” OD) 16.80 cm.

Elevation Adjustment Range

5° - 90° Continuous Fine Adjust

Azimuth Adjustment Range

+/- 45° Fine Adjustment, 360° Continuous

Mount Type

Elevation over Azimuth

Shipping Specifications (Approximate Net Weight):

930 lbs.

950 lbs.

920 lbs.
