Actox

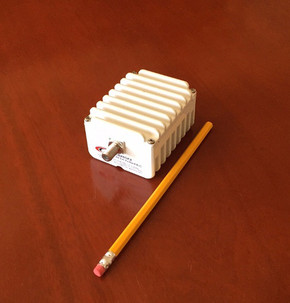

Actox ABA6SKXLF 6W Super Mini Ext. Low Ku-Band BUC, F-Type
Product Code:
ABA6SKXLF
Condition:
New
Weight:
0.34 KGS
Width:
8.40
(cm)
Height:
4.95
(cm)
Depth:
6.80
(cm)
$995.00
Actox 6W Super Mini Ext. Low Ku-Band BUC
This smallest and lightest 6W L-To Low Ku-Band Block Up Converter is based on GaN technology and is designed to be mounted directly on the feed horn. High power efficiency resulting in low current (< 1 amps) consumption allows to use this BUC with any modem without an external power supply.
Features
- Output frequency 12.75-13.50 GHz
- L.O. 11.80 GHz
- Based on GaN technology which enables high efficiency, low power consumption and high reliability
- Industry’s lowest power consumption (25W max.)
- Smallest package size and weight
- Powered through IF cable
- High power efficiency
- RoHS compliant
|
Model |
RF Frequency |
Local Frequency |
IF Frequency |
Output Power |
Connector |
|
ABA6SKXLF |
12.75 to 13.50 GHz |
11.80 GHz |
950 to 1,700 MHz |
6W (+38 dBm min.) |
F-type |
|
Parameter |
Value |
|
Output interface |
Waveguide, WR-75 |
|
Output power |
+38 dBm minimum over temperature |
|
Conversion gain |
62 dB nom. |
| External reference required frequency |
10 MHz (sine-wave) |
| External reference input power |
-5 to +5 dBm @ input port |
|
Phase noise (Exceeds Intelsat’s standard IESS308/309) |
-53 dBc/Hz max. @ 10 Hz |
|
Input V.S.W.R. |
1.5:1 max |
|
Output V.S.W.R. |
1.5:1 max |
|
Power supply |
+15 VDC~+24 VDC via IF cable 25 W max. |
|
Mute |
Shut off the BUC if LO unlocked |
|
Input interface |
F-type |
|
Power consumption |
25W max. |
|
Operating temperature |
-40 to +55 degrees C |
|
Storage temperature |
-55 to +85 degrees C |
|
Vibration & shock |
Complies with MIL-STD-810E |
|
Size |
84 (L) x 68 (W) x 49.5 (H) mm |
|
Weight |
0.340 kg (0.75 lbs) max. |
5 customers are viewing this product
Details
Actox 6W Super Mini Ext. Low Ku-Band BUC
This smallest and lightest 6W L-To Low Ku-Band Block Up Converter is based on GaN technology and is designed to be mounted directly on the feed horn. High power efficiency resulting in low current (< 1 amps) consumption allows to use this BUC with any modem without an external power supply.
Features
- Output frequency 12.75-13.50 GHz
- L.O. 11.80 GHz
- Based on GaN technology which enables high efficiency, low power consumption and high reliability
- Industry’s lowest power consumption (25W max.)
- Smallest package size and weight
- Powered through IF cable
- High power efficiency
- RoHS compliant
|
Model |
RF Frequency |
Local Frequency |
IF Frequency |
Output Power |
Connector |
|
ABA6SKXLF |
12.75 to 13.50 GHz |
11.80 GHz |
950 to 1,700 MHz |
6W (+38 dBm min.) |
F-type |
|
Parameter |
Value |
|
Output interface |
Waveguide, WR-75 |
|
Output power |
+38 dBm minimum over temperature |
|
Conversion gain |
62 dB nom. |
| External reference required frequency |
10 MHz (sine-wave) |
| External reference input power |
-5 to +5 dBm @ input port |
|
Phase noise (Exceeds Intelsat’s standard IESS308/309) |
-53 dBc/Hz max. @ 10 Hz |
|
Input V.S.W.R. |
1.5:1 max |
|
Output V.S.W.R. |
1.5:1 max |
|
Power supply |
+15 VDC~+24 VDC via IF cable 25 W max. |
|
Mute |
Shut off the BUC if LO unlocked |
|
Input interface |
F-type |
|
Power consumption |
25W max. |
|
Operating temperature |
-40 to +55 degrees C |
|
Storage temperature |
-55 to +85 degrees C |
|
Vibration & shock |
Complies with MIL-STD-810E |
|
Size |
84 (L) x 68 (W) x 49.5 (H) mm |
|
Weight |
0.340 kg (0.75 lbs) max. |
