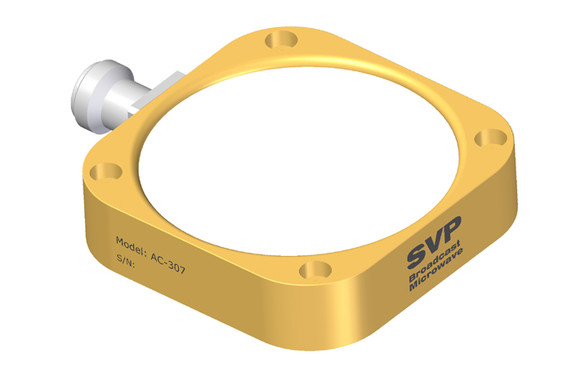

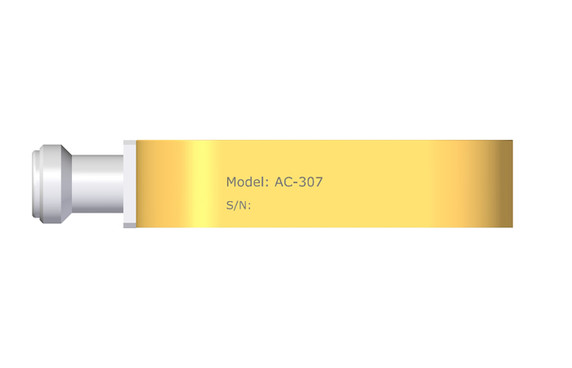

SVP Aerospace AC Directional Patch Uplook Antenna
Product Code:
AC
Condition:
New
Weight:
0.25 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The AC antennas are intended for gerneal wide coverage quasi-directional applications. Used either across an arena or golf course, or in an uplook/downlook environment, these proven designs provide high performance with rugged simplicity.
It is a circular polarized antenna especially useful for multipath environments.

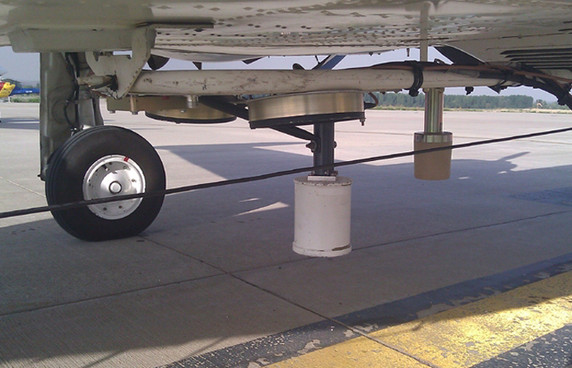

It is usually used for the transmission and reception of links from the ground to the helicopter or aircraft, being the ground transmitter a mobile transmitter.
| SPECIFICATIONS | |
| AC DIRECTIONAL PATCH ANTENNA | |
| Frequency range | 1.35 to 1.55 GHz (AC-107) 2.05 to 2.4 GHz (AC-207) 3.3 to 3.75 GHz (AC-307) 4.4 to 5.1 GHz (AC-407) 5.0 to 5.5 GHz (AC-507) |
| Gain | 7 dBiC Nominal |
| Polarization | R.H. Circular |
| Beamwidth | 80º × 80º |
| Axial ratio | 3 dB typical |
| VSWR | 2:1 |
| Power rating | 10 W |
| Connector | N female |
| Temperature range | -20 ºC to +50 ºC |
| Size | 150 × 30.6 mm (AC-107) 85 × 20 mm (AC-207) 96 × 17.5 mm (AC-307) 96 × 17.5 mm (AC-407) 96 × 17.5 mm (AC-507) |
| Weight | 250 g |
| Radome | Beige Polypropylene |
| Wind loading | 1.42 Kg (3.1 lbs) @ 100 mph |
