SVP Aerospace
SVP Aerospace AVF Flexible Antenna
Product Code:
AVF
Condition:
New
Weight:
0.16 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

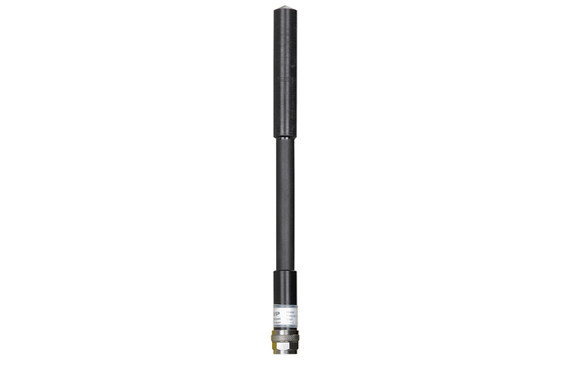

The AVF antennas are flexible omnidirectional antennas designed to be used together with camera transmitters. These antennas have low weight and high performance. They allow the cameraman to move freely.
The flexible part elevates the radiating element over the cameraman’s head. Besides, in case of impact the antenna bends.
| SPECIFICATIONS | |
| AVF FLEXIBLE ANTENNA | |
| Frequency band | AVF-103: 1.2 to 1.5 GHz AVF-203: 2.0 to 2.7 GHz AVF-303: 3.0 to 3.7 GHz AVF-403: 4.4 to 5.9 GHz AVF-603: 6.0 to 7.5 GHz |
| Gain | 3 dBi |
| Polarization | Vertical |
| VSWR | Typ < 1.3 |
| Connector | N male |
| Dimensions | L 290 mm × D 22 mm L 400 mm × D 22 mm |
| Weight | 160 g approx. |
5 customers are viewing this product
Details
The AVF antennas are flexible omnidirectional antennas designed to be used together with camera transmitters. These antennas have low weight and high performance. They allow the cameraman to move freely.
The flexible part elevates the radiating element over the cameraman’s head. Besides, in case of impact the antenna bends.
| SPECIFICATIONS | |
| AVF FLEXIBLE ANTENNA | |
| Frequency band | AVF-103: 1.2 to 1.5 GHz AVF-203: 2.0 to 2.7 GHz AVF-303: 3.0 to 3.7 GHz AVF-403: 4.4 to 5.9 GHz AVF-603: 6.0 to 7.5 GHz |
| Gain | 3 dBi |
| Polarization | Vertical |
| VSWR | Typ < 1.3 |
| Connector | N male |
| Dimensions | L 290 mm × D 22 mm L 400 mm × D 22 mm |
| Weight | 160 g approx. |
