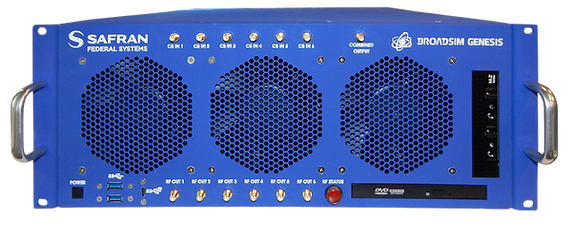

Safran BroadSim Genesis Advanced NAVWAR Simulator

BroadSim Genesis is redefining GNSS simulation with unmatched flexibility, cost-effectiveness, and rapid development cycles. Powered by Safran’s Skydel simulation engine and commercial off-the-shelf (COTS) software-defined radios (SDRs), it delivers high-performance GNSS signal generation at a fraction of the cost of traditional industry solutions.

By enabling simulation of military and multi-constellation signals on scalable COTS hardware, BroadSim Genesis offers exceptional value, accelerates time to market, and ensures adaptability for evolving test needs.

Quad Frequency NAVWAR Support: Simultaneously simulates four GNSS frequency bands with integrated jamming and all-in-view spoofing capabilities, which are critical for testing resiliency.

2000+ Signal Performance: GEO, MEO, or LEO—BroadSim Genesis provides the GPU power to simulate them all.

Military GPS Simulation: Facilitates secure and effective MGUE testing with Y-Code or M-Code (AES, MNSA, or SDS), making it suitable for classified testing environments.

Safran Federal Systems is the trusted Resilient PNT mission partner to U.S. government and defense organizations, supporting operations from the lab through to field deployment.

Key Simulation Features

• 1000 Hz simulation iteration rate
  Enables highly accurate dynamic GNSS environment modeling, which is crucial for high-speed aerial and terrestrial navigation applications.

• Advanced jamming and spoofing capabilities
  Allows the creation of complex interference and spoofing scenarios, ensuring GNSS equipment maintains functionality and security under electronic warfare conditions.

• Live sky synchronization
  Provides real-time emulation of GNSS environments, including satellite positions, transmitted data, and timing. This is essential for accurate testing under current operational conditions.
