RF-Design
RF-Design QLink2 Quad RF-over-Fiber TX Outdoor System
Condition:
New
Availability:
YES
Weight:
5.00 KGS
Width:
40.00
(cm)
Height:
30.00
(cm)
Depth:
18.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545

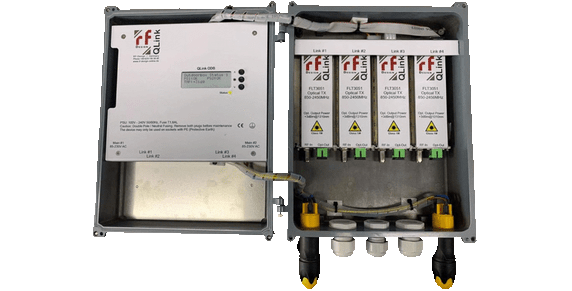

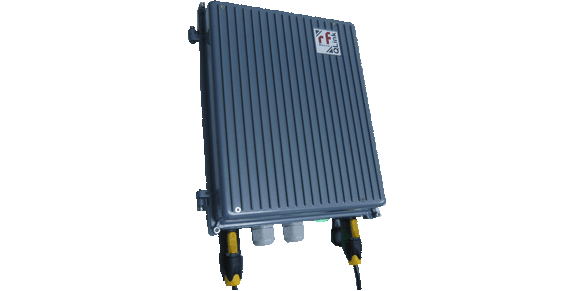

The QLink2 TX-System represents a compact and modular Quad outdoor RF-over-Fiber system that can be populated with up to 4 optical TX (transmit) modules. The system allows secure and high quality optical transmission of RF signals in L-Band and Extended L-Band over a distance of up to 5km. The outdoor enclosure is designed to be mounted directly at the antenna mast. The System furthermore comes with beneficial features such as variable gain-control, RF power monitoring, laser monitoring, switchable LNB-supply and 1:1 redundant dual power supply.
Local configuration and monitoring of the QLink2 system can be done via its front panel LC-Display/keypads. The QLink2 system is a versatile, space and cost efficient outdoor optical transmission solutions perfectly suited for applications in Teleports, Satellite Earth Stations, Broadcast- and Broadband facilities.
Features & Benefits
-
Robust & weatherproof (IP65) outdoor enclosure
-
Holds up to 4 optical TX modules
-
Variable gain control
-
RF power monitoring
-
Switchable LNB-supply
-
Local configuration via LC-Display
-
1:1 redundant dual power supply
5 customers are viewing this product
Details
The QLink2 TX-System represents a compact and modular Quad outdoor RF-over-Fiber system that can be populated with up to 4 optical TX (transmit) modules. The system allows secure and high quality optical transmission of RF signals in L-Band and Extended L-Band over a distance of up to 5km. The outdoor enclosure is designed to be mounted directly at the antenna mast. The System furthermore comes with beneficial features such as variable gain-control, RF power monitoring, laser monitoring, switchable LNB-supply and 1:1 redundant dual power supply.
Local configuration and monitoring of the QLink2 system can be done via its front panel LC-Display/keypads. The QLink2 system is a versatile, space and cost efficient outdoor optical transmission solutions perfectly suited for applications in Teleports, Satellite Earth Stations, Broadcast- and Broadband facilities.
Features & Benefits
-
Robust & weatherproof (IP65) outdoor enclosure
-
Holds up to 4 optical TX modules
-
Variable gain control
-
RF power monitoring
-
Switchable LNB-supply
-
Local configuration via LC-Display
-
1:1 redundant dual power supply
