RF-Design FlexLink R25CS Combining Matrix L-Band / S-Band 64:64 800 – 4000MHz
Product Code:
R25CS
Condition:
New
Weight:
45.00 KGS
Width:
48.30
(cm)
Height:
22.20
(cm)
Depth:
50.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

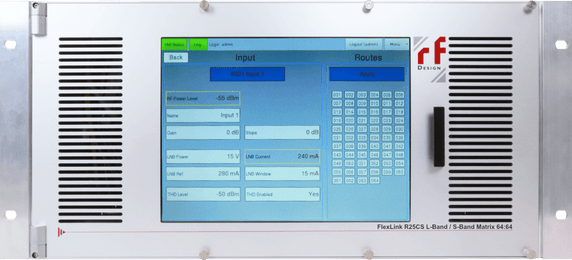

FlexLink R25CS – Advanced RF Combining Matrix for Extended L- to S-Band Applications (800–4000 MHz).

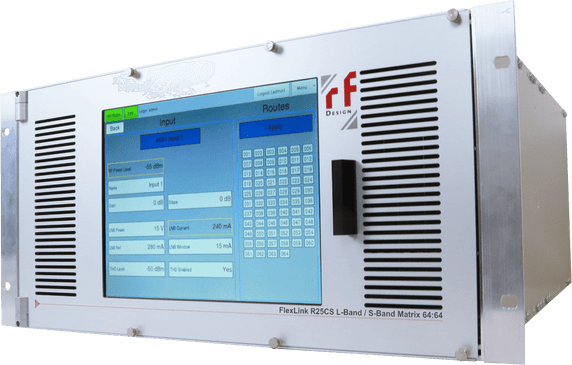

The FlexLink R25CS is a versatile, innovative, and compact RF combining matrix, designed for high-performance signal routing in satellite, broadcast, test, and defense environments. Housed in a 5RU/19" rackmount chassis with just 500 mm depth, it supports fan-in/combining configurations from 8:8 up to 64:64, available in both symmetric and asymmetric layouts.
Engineered with a wide frequency range (800–4000 MHz), the R25CS goes beyond traditional L-Band, covering parts of the SBand, making it ideally suited for Ka-Band gateways, HTS (High Throughput Satellites), S-band satellite links, radar systems, and RF test automation.

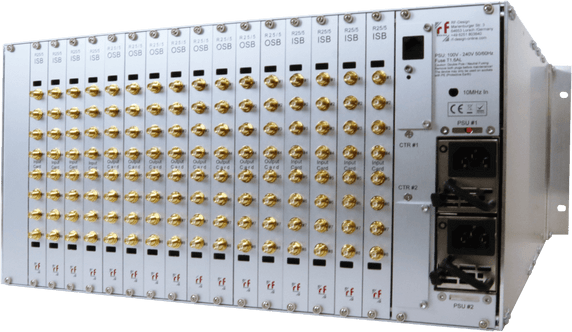

Its modular design allows flexible combinations of input/output connectors (50 Ohm SMA or BNC), enabling seamless future upgrades or integration into existing infrastructures.
Key features include:
- Variable gain control and slope equalization
- RF power monitoring for all signal paths
- Full status monitoring of active components
- Hot-swappable, 1:1 redundant power supplies
The FlexLink R25CS is a future-proof RF signal management solution for demanding applications in satellite communications, aerospace, defense, and RF laboratories—where flexibility, performance, and reliability are critical.
| RF Specifications Combining Matrix | |
| Frequency Range: | 800 – 4000MHz (extended L-Band) |
| Frequency Response: | ± 3dB typ. ±3,5dB max. |
| Noise Figure: | <=20dB |
| Isolation: | ≥60dB typ. |
| Operational Input Power: | -70dBm to -10dBm nominal, 0dBm max. (Recommended) |
| RF Input Power: | +6dBm max. (damage level, depends on gain setting) |
| RF Output Power: | +6dBm max. (damage level, depends on gain setting) |
| IMA3 @ -10dBm: | <50dBc |
| P1dB: | +8dBm |
| SFDR: | < -80dBm |
| Order Information | |
| Type | Description |
|
FlexLink R25CS Combining Matrix Chassis |
FlexLink R25CS/5 Combining Switch Matrix Chassis Main controller, 10" touchscreen, RJ45 1GBit Ethernet Interface (WebGUI, SNMP), 1:1 redundant dual power supply, 5RU/19" rack mount |
| FlexLink R25CS ISB0808CS Input 8:8 Combiner Board | Input Combiner Switch Board, 8 x RF Input, 800 - 4000MHz, 50Ohm SMA |
| FlexLink R25CS OSB0808CS Output 8_8 Combiner Board 50S | Output Combiner Switch Board 8 x RF Output, 800 - 4000MHz, SMA 50Ohm |
