RF-Design FlexLink K7-Pro Extended L-Band Switch Matrix 8:8 to 64:64, 850 – 2450MHz

(No reviews yet) Write a Review
Condition:
New
Availability:
YES
Weight:
10.00 KGS
Width:
48.26 (cm)
Height:
26.70 (cm)
Depth:
50.00 (cm)
  • RF-Design FlexLink K7-Pro Extended L-Band Switch Matrix 8:8 to 64:64, 850 – 2450MHz
  • RF-Design FlexLink K7-Pro Extended L-Band Switch Matrix 8:8 to 64:64, 850 – 2450MHz
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545

Description

The FlexLink K7-Pro is an innovative, unique and clever scalable L-Band Switch Matrix system in 6RU/19″ rack mount design supporting Extended L-Band frequency range (850 – 2450MHz), useable for Ka-Band and HTS applications. It allows various switch/routing configurations from 8:8 to 256:256 (increments of 8). The system comes with standard features like variable gain-control, slope equalization, RF power monitoring and also is equipped with an 10MHz external reference signal port.



Features & Benefits



  • 6RU/19″ rack mount design

  • Configurations 8:8 to 64:64

  • Expandable to 256:256

  • Extended L-Band (850 – 2450MHz)

  • 10MHz external reference signal port

  • Various input & output coax connectors (50 & 75OHm)

  • Variable gain control

  • Slope equalization

  • RF power monitoring

  • Superior RF performance

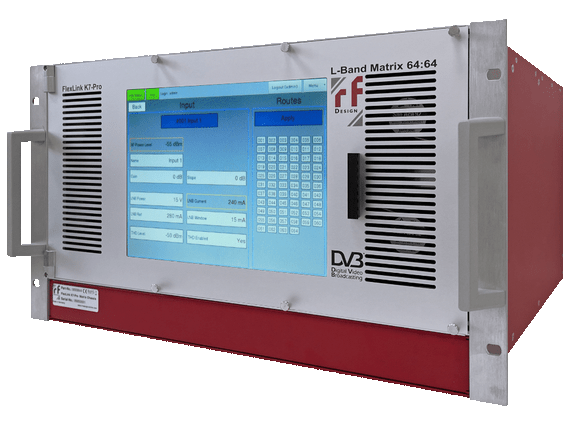

  • Front-side LCD touchscreen

  • Remote configuration via WebGUI



and more …



The FlexLink K7-Pro is future proof coming with widened bandwidth of 850 2450MHz supporting the extended L-Band (850 2450MHz) frequency range making it a perfect solution also
for KA-Band and HTS applications.

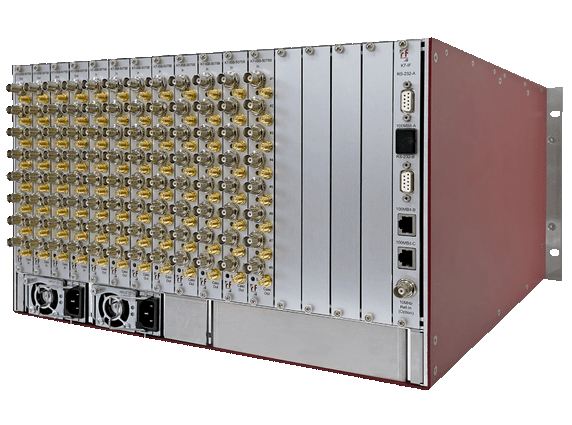

This scalable Switch Matrix system offers a maximum in flexibility combined with state-of-the-art functionalities, features, excellent RF performance and various options. All matrix switch-boards are
hot-swappable while each I/O switch-board is equipped with cascading-interfaces allowing to expand an existing system without the need of any other additional devices. This unique
expansion concept results in less space requirement, reduced power consumption and avoids additional point of failures.

The flexible modular design makes it possible to mix the input and output connectors with various connector types (50Ohm SMA or BNC, 75Ohm F or BNC as well as optical inputs) giving the
operator the flexibility for future expansions.

The FlexLink K7-Pro features variable gain-control & slope-equalization, RF power monitoring as well as a 10MHz reference signal port. Furthermore, it supports status monitoring of all active
components and comes a with 1:1 redundant dual power supply (hot-swappable). Additional flexibility is being provided via available options like switchable LNB-supply, individually
selectable and configurable for each input.

A very special and unique optional feature is the “K7SQA Signal Quality Analyzer”. It is an add-on Spectrum-Analyzer board allowing measurement and monitoring of RF parameters (any input
& output of the matrix). It measures parameters like RF power, C/N and more. It is equipped with an RJ45/100MBit interface allowing IP output streaming (MPTS).

Beyond its state-of-the-art and unique mechanical concept, all the functionalities and options the FlexLink K7-Pro also assures superior and stable RF performance at the highest quality level.
