RF-Design

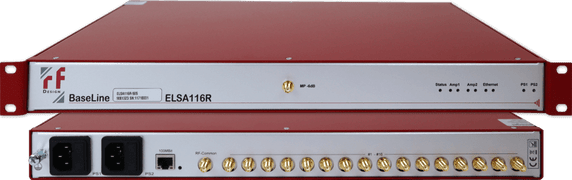

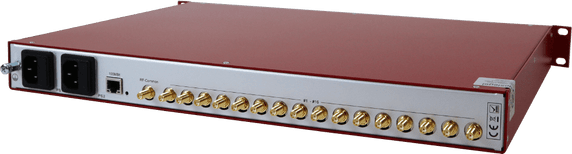

RF-Design ELSA Baseline Series Extended L-Band Active Splitter with redundant Amplifier
Product Code:
ELSA116R-50S
Weight:
6.00 KGS
Width:
48.26
(cm)
Height:
22.00
(cm)
Depth:
40.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
ELSA Baseline Series
Extended L-Band Active Splitter with redundant Amplifier
The ELSA Baseline Splitter represents professional active IF splitting in a compact 1RU/19″ rack mount chassis, especially designed for RF distribution applications where excellent, stable and accurate signal quality and performance is necessary.
The unit is available as 16-way active splitter and operate at the Extended L-Band Frequency Range 850 – 2450MHz.
Additionally, they feature RF power monitoring at all inputs and at its output and come with 1:1 amplifier and 1:1 redundant dual power supply.

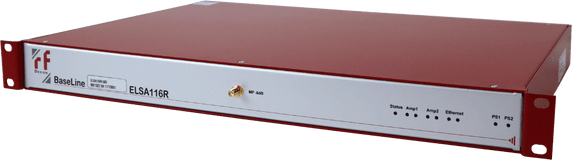

Front side status LED´s indicating and monitoring the health status of the unit. Remote configuration, monitoring and alarming can be done via an RJ45 Ethernet-Interface (WebGUI, SNMP).
Features & Benefits
- Space saving 1RU/19″ rack mount design
-
Extended L-Band 850 – 2450MHz
-
1:16 splitting
-
1:1 redundant amplifier
-
50Ohm SMA(f)
-
Threshold monitoring
-
Front panel status LED´s and rf monitoring port -20dB
-
Remote configuration and monitoring (WebGUI, SNMP)
-
1:1 redundant dual power supply
5 customers are viewing this product
Details
ELSA Baseline Series
Extended L-Band Active Splitter with redundant Amplifier
The ELSA Baseline Splitter represents professional active IF splitting in a compact 1RU/19″ rack mount chassis, especially designed for RF distribution applications where excellent, stable and accurate signal quality and performance is necessary.
The unit is available as 16-way active splitter and operate at the Extended L-Band Frequency Range 850 – 2450MHz.
Additionally, they feature RF power monitoring at all inputs and at its output and come with 1:1 amplifier and 1:1 redundant dual power supply.
Front side status LED´s indicating and monitoring the health status of the unit. Remote configuration, monitoring and alarming can be done via an RJ45 Ethernet-Interface (WebGUI, SNMP).
Features & Benefits
- Space saving 1RU/19″ rack mount design
-
Extended L-Band 850 – 2450MHz
-
1:16 splitting
-
1:1 redundant amplifier
-
50Ohm SMA(f)
-
Threshold monitoring
-
Front panel status LED´s and rf monitoring port -20dB
-
Remote configuration and monitoring (WebGUI, SNMP)
-
1:1 redundant dual power supply
