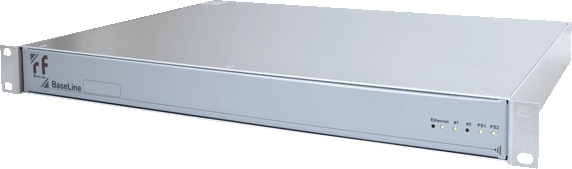

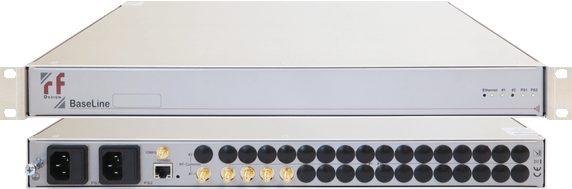

RF-Design LSA Baseline Extended L-Band Active Splitters (4-way, 8-way, 16-way)

No reviews yet
Condition: New
Availability: YES
Weight: 7.00 KGS
Width: 48.26 (cm)
Height: 4.40 (cm)
Depth: 40.00 (cm)

Request a quote at Contact@orbitalconnect.com or +1.888.315.9545

The LSA Baseline series represents professional active L-Band splitters in a compact 1RU/19″ rack mount chassis. The units are available as single units (1:4, 1:8, 1:16) or dual units (2 x 1:4, 2 x 1:8, 2 x 1:16) and are especially designed for applications where stable and accurate signal quality is necessary.

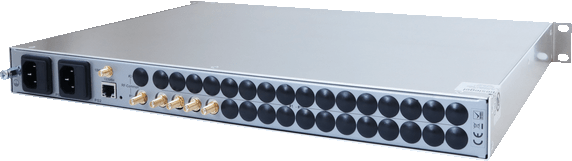

The units support extended L-Band frequency range 850 – 2450MHz ready for KA-Band and HTS applications. Additionally, they feature switchable LNB-supply (13/18VDC, 22kHz), RF power monitoring, a rear-side 10MHz external reference signal port and have 1:1 redundant dual power supply. Front side status LED´s indicating and monitoring the health status of the unit. Remote configuration, monitoring and alarming can be done via an RJ45 Ethernet-Interface (WebGUI, SNMP).

Features & Benefits



  • Space saving 1RU/19″ rack mount design

  • Available as single or dual splitters

  • 50Ohm SMA(f) / BNC(f) or 75Ohm F(f) / BNC(f)

  • Front panel status LED´s

  • RF power monitoring

  • Switchable LNB-supply 0/13/18VDC, 22kHz tone

  • 10MHz external reference signal input (Option)

  • Remote configuration and monitoring (WebGUI, SNMP)

  • 1:1 redundant dual power supply
