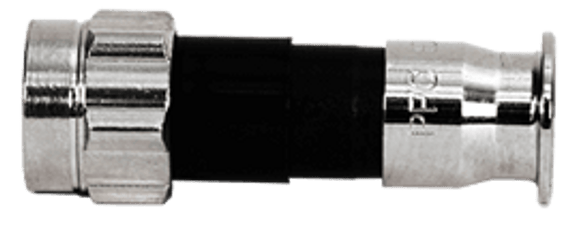

PPC Belden EXM-XLPLUS EX Universal Compression Connector, SignalTight, extended body, mini cable (50 pcs)
Product Code:
EXM-XLPLUS
Condition:
New
Weight:
1.00 KGS
$105.00
EX® Universal compression connector, SignalTight® continuity technology, extended body, mini cable
SignalTight® drop connectors achieve signal transmission approaching that of a fully-tightened connector, even if loose. The EXM-XLPLUS connector features PPC’s EX® series universal compression design. This connector maintains continuity even when very loose, reducing QAM errors and packet loss, and preventing service issues from loose connectors. The EXM-XLPLUS mini drop connector is the preferred choice of operators looking to maximize performance in the network headend.
Package includes: 50 pieces of connectors.
| Technical Data | |
| Specification | Value |
| Bandwidth | 0 MHz to 3 GHz |
| Impedance | 75 Ohms (nominal) |
| Return Loss | Minimum -30 dB to 3 GHz |
| Insertion Loss | Less than .10 dB to 3 GHz |
| Operating Voltage | 90 V (at 60 Hz continous AC) |
| Operating Temperature | -40° F to 140° F (-40° C to 60° C) |
5 customers are viewing this product
Details
EX® Universal compression connector, SignalTight® continuity technology, extended body, mini cable
SignalTight® drop connectors achieve signal transmission approaching that of a fully-tightened connector, even if loose. The EXM-XLPLUS connector features PPC’s EX® series universal compression design. This connector maintains continuity even when very loose, reducing QAM errors and packet loss, and preventing service issues from loose connectors. The EXM-XLPLUS mini drop connector is the preferred choice of operators looking to maximize performance in the network headend.
Package includes: 50 pieces of connectors.
| Technical Data | |
| Specification | Value |
| Bandwidth | 0 MHz to 3 GHz |
| Impedance | 75 Ohms (nominal) |
| Return Loss | Minimum -30 dB to 3 GHz |
| Insertion Loss | Less than .10 dB to 3 GHz |
| Operating Voltage | 90 V (at 60 Hz continous AC) |
| Operating Temperature | -40° F to 140° F (-40° C to 60° C) |
