PPC Belden

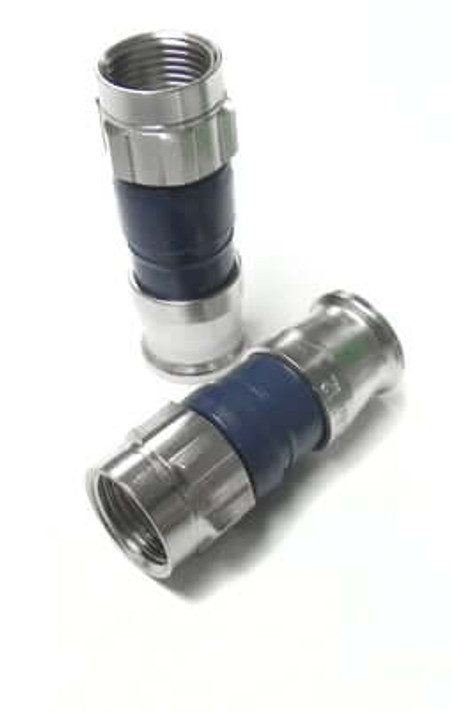

PPC Belden EX6PLPLUS EX Universal Compression Plenum Connector, SignalTight (50 pcs)
Product Code:
EX6PLPLUS
Condition:
New
Weight:
1.00 KGS
$51.43
EX® universal compression connector, SignalTight® continuity technology, series 6 plenum cable
SignalTight® drop connectors achieve signal transmission approaching that of a fully-tightened connector, even if left loose. This innovative design protects against digital video artifacts, DOCSIS performance degradation, LTE interference, and upstream signal-to-noise issues. The result is an improved customer experience and the elimination of costly, unnecessary truck rolls and service calls to correct issues related to loose connectors.
Package includes: 50 pieces of connectors.
| Technical Data | ||
| Electrical Specifications | ||
| Bandwidth | 0 MHz to 3 GHz | |
| Impedance | 75 Ohms (nominal) | |
| Return Loss (Gated) | 5 to 1,000 MHz | -30 dB Minimum |
| 1,000 to 2000 MHz | -30 dB Minimum | |
| 2,000 to 3,000 MHz | -20 dB Minimum | |
| Insertion Loss | 5 to 3,000 MHz | Less than .20 dB |
| Operating Voltage | 90 V (at 60 Hz continuous AC) | |
| Operating Temperature | -40 °F to 140 °F (-40 °C to 60 °C) | |
| Cable Retention | 45 lbs (20.41 kg) minimum | |
5 customers are viewing this product
Details
EX® universal compression connector, SignalTight® continuity technology, series 6 plenum cable
SignalTight® drop connectors achieve signal transmission approaching that of a fully-tightened connector, even if left loose. This innovative design protects against digital video artifacts, DOCSIS performance degradation, LTE interference, and upstream signal-to-noise issues. The result is an improved customer experience and the elimination of costly, unnecessary truck rolls and service calls to correct issues related to loose connectors.
Package includes: 50 pieces of connectors.
| Technical Data | ||
| Electrical Specifications | ||
| Bandwidth | 0 MHz to 3 GHz | |
| Impedance | 75 Ohms (nominal) | |
| Return Loss (Gated) | 5 to 1,000 MHz | -30 dB Minimum |
| 1,000 to 2000 MHz | -30 dB Minimum | |
| 2,000 to 3,000 MHz | -20 dB Minimum | |
| Insertion Loss | 5 to 3,000 MHz | Less than .20 dB |
| Operating Voltage | 90 V (at 60 Hz continuous AC) | |
| Operating Temperature | -40 °F to 140 °F (-40 °C to 60 °C) | |
| Cable Retention | 45 lbs (20.41 kg) minimum | |
