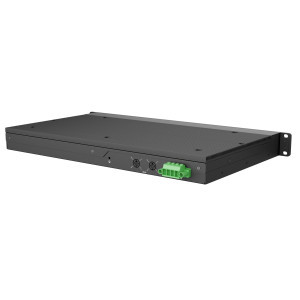

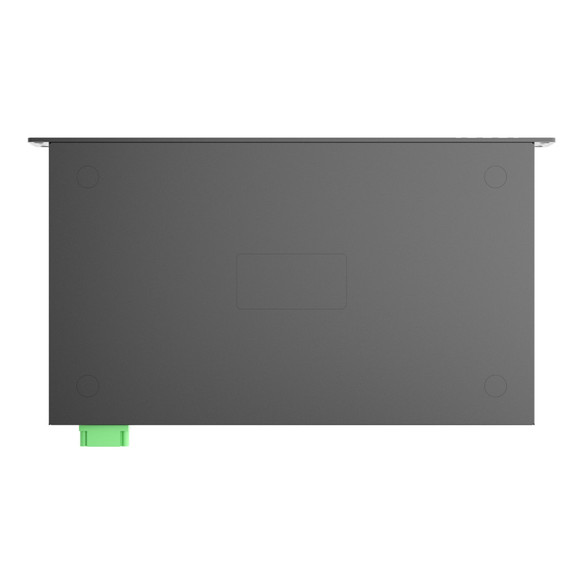

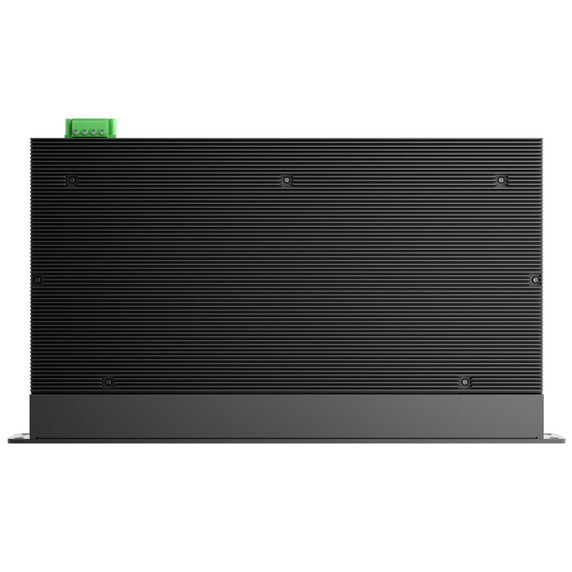

Peplink PLS-R-24-H2G-250W 24 PoE 2.5G Switch Rugged
Product Code:
PLS-R-24-H2G-250W
Weight:
5.10 KGS
Width:
46.50
(cm)
Height:
4.50
(cm)
Depth:
26.50
(cm)
$1,199.00
Peplink 24 Port Rugged Switch: Built for the Toughest Environments
Introducing the Peplink 24 Port Rugged Switch, engineered to withstand the harshest industrial environments while delivering top-notch performance. This switch combines durability with advanced networking capabilities, making it the ideal choice for demanding applications.
Key Features:
- Ruggedized Enclosure with a fan-less design for industrial environments.
- 16x 1GE (802.3at PoE+) RJ45 ports
- 8x 2.5GE (802.3at PoE+) RJ45 ports
- 4x 10GE SFP+ ports
- 250W PoE power budget
*Note: Currently, these Switches can only be configured through InControl. However, a new feature for our Peplink routers, the Switch Controller, will be available soon, enabling offline local management of multiple Switches without the need for InControl.
| Technical Specifications | |
| Interface | 16x 1GE l 802.3at PoE+ |
| 8x 2.5GE l 802.3at PoE+ | |
| 4x 10GE | |
| Switch Capacity | 152 Gbps |
| Max. Packet Forwarding Rate | 216 Mpps |
| MAC Address Table | 16 |
| Power Supply | 1x External PSU (300W) |
| Power Input | • AC Input: 100-240V, 4A |
| • DC Output: 54V, 5.56A | |
| • 2x Power DIN: 54V DC | |
| • 1x Terminal Block: 12V - 54V DC | |
| Power Consumption | 38W (System) |
| Total PoE Power Budget | 250W |
| Dimensions (D x W x H) | 10.5 x 19.1 x 1.8 inches (265 x 485 x 45 mm) |
| Weight | 11.3 pounds / 5.1 kg |
| Operating Temperature | -40° – 149°F / -40° – 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Certification | FCC, CE, RoHS |
| Warranty | 1-Year Limited Warranty |
| Package Content | 1x 24 PoE 2.5G Switch Rugged |
| 1x Power Cord | |
| 1x 300W PSU | |
| 1x Screw Set | |
| 1x Rubber Foot Pad Set | |
| Management/Configuration | InControl |
5 customers are viewing this product
Details
Peplink 24 Port Rugged Switch: Built for the Toughest Environments
Introducing the Peplink 24 Port Rugged Switch, engineered to withstand the harshest industrial environments while delivering top-notch performance. This switch combines durability with advanced networking capabilities, making it the ideal choice for demanding applications.
Key Features:
- Ruggedized Enclosure with a fan-less design for industrial environments.
- 16x 1GE (802.3at PoE+) RJ45 ports
- 8x 2.5GE (802.3at PoE+) RJ45 ports
- 4x 10GE SFP+ ports
- 250W PoE power budget
*Note: Currently, these Switches can only be configured through InControl. However, a new feature for our Peplink routers, the Switch Controller, will be available soon, enabling offline local management of multiple Switches without the need for InControl.
| Technical Specifications | |
| Interface | 16x 1GE l 802.3at PoE+ |
| 8x 2.5GE l 802.3at PoE+ | |
| 4x 10GE | |
| Switch Capacity | 152 Gbps |
| Max. Packet Forwarding Rate | 216 Mpps |
| MAC Address Table | 16 |
| Power Supply | 1x External PSU (300W) |
| Power Input | • AC Input: 100-240V, 4A |
| • DC Output: 54V, 5.56A | |
| • 2x Power DIN: 54V DC | |
| • 1x Terminal Block: 12V - 54V DC | |
| Power Consumption | 38W (System) |
| Total PoE Power Budget | 250W |
| Dimensions (D x W x H) | 10.5 x 19.1 x 1.8 inches (265 x 485 x 45 mm) |
| Weight | 11.3 pounds / 5.1 kg |
| Operating Temperature | -40° – 149°F / -40° – 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Certification | FCC, CE, RoHS |
| Warranty | 1-Year Limited Warranty |
| Package Content | 1x 24 PoE 2.5G Switch Rugged |
| 1x Power Cord | |
| 1x 300W PSU | |
| 1x Screw Set | |
| 1x Rubber Foot Pad Set | |
| Management/Configuration | InControl |
Download
| Download Name | |
| Peplink 24 PoE 2.5G Rugged Switch Data Sheet | |
