Norsat International Inc.

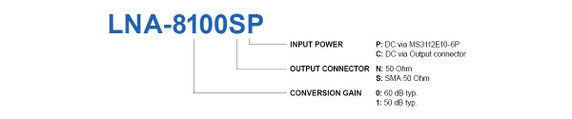

Norsat LNA-8100SP 8000 Single-Band C-Band LNA
Product Code:
LNA-8100SP
Weight:
0.63 KGS
Width:
18.10
(cm)
Height:
7.00
(cm)
Depth:
10.00
(cm)
orbital-datasheet_1:
https://cdn.shopify.com/s/files/1/0529/5806/8919/files/LNA-8000-Series-RoHS.pdf?8000 Single-Band C-Band LNA Data Sheet
$1,500.00
|
KEY SPECIFICATIONS |
|
| band | C-Band |
| input frequency band 1 | 3.40 - 4.20 GHz |
| noise figure | 30 K max. at room temp. |
| Product Revision | A |
|
RF SPECIFICATIONS |
|
| conversion gain typ | 50 dB |
| Gain Flatness (over full band) | ≤ 4 dB p-p |
| input VSWR | 2.2 : 1 max. |
| output P1dB | + 5 dBm min. |
| output VSWR | 2.2 : 1 max. |
|
ELECTRICAL SPECIFICATIONS |
|
| input power | Output Connector |
| power requirements | +15 to +24V DC |
|
INTERFACE SPECIFICATIONS |
|
| RF input connector | CPR 229G waveguide grooved |
| RF output connector | S: SMA 50 Ohm |
|
ENVIRONMENTAL SPECIFICATIONS |
|
| humidity | 0 - 95% |
| IP rating | IP 67 |
| temperature operational | -40 to +60°C |
| temperature storage | -40 to +80°C |
|
PHYSICAL SPECIFICATIONS |
|
| product dimensions (LxWxH) | 181 x 100 x 70 mm |
| product weight | 0.63 kg |
5 customers are viewing this product
Details
|
KEY SPECIFICATIONS |
|
| band | C-Band |
| input frequency band 1 | 3.40 - 4.20 GHz |
| noise figure | 30 K max. at room temp. |
| Product Revision | A |
|
RF SPECIFICATIONS |
|
| conversion gain typ | 50 dB |
| Gain Flatness (over full band) | ≤ 4 dB p-p |
| input VSWR | 2.2 : 1 max. |
| output P1dB | + 5 dBm min. |
| output VSWR | 2.2 : 1 max. |
|
ELECTRICAL SPECIFICATIONS |
|
| input power | Output Connector |
| power requirements | +15 to +24V DC |
|
INTERFACE SPECIFICATIONS |
|
| RF input connector | CPR 229G waveguide grooved |
| RF output connector | S: SMA 50 Ohm |
|
ENVIRONMENTAL SPECIFICATIONS |
|
| humidity | 0 - 95% |
| IP rating | IP 67 |
| temperature operational | -40 to +60°C |
| temperature storage | -40 to +80°C |
|
PHYSICAL SPECIFICATIONS |
|
| product dimensions (LxWxH) | 181 x 100 x 70 mm |
| product weight | 0.63 kg |
Download
| Download Name |
