CPI

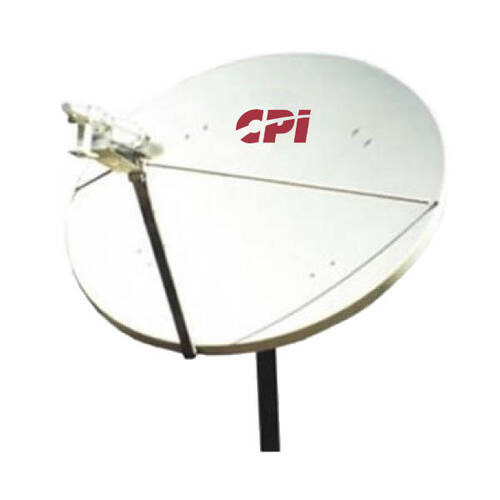

CPI SAT 1.8 Meter Ku-Band Linear Rx/Tx Antenna, 1194 Series
Product Code:
1194-3110
Condition:
New
Availability:
YES
Weight:
111.00 KGS
Width:
180.00
(cm)
Height:
180.00
(cm)
Depth:
46.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
The CPI 1134 series antenna is ideally suited for demanding commercial and industrial VSAT applications. The one-piece compression molded reflector is precision manufactured for high-efficiency Ku-Band operation. The Az/El mount is designed for easy installation and features fine azimuth and elevation adjustments to dial in and optimize your satellite signal. The Az/El mount is constructed from heavy gauge, pre-galvanized steel for strength and corrosion resistance. A standard Ku-Band linear cross pol Rx/Tx feed comes standard with the Series 1134 Antenna.
| Electrical | Series 1194 Ku-Band |
| Antenna Size | 1.8M (71 in.) |
| Operating Frequency (GHz) | |
| Receive | 10.95 - 12.75 GHz |
| Тransmit | 13.75 - 14.50 GHz |
| Midband Gain ( +/- .2dB) | 45.20 dBi |
| Receive Transmit | 46.70 dBi |
| Antenna Noise Temperature | |
| 20° Elevation | 38 K |
| 30° Elevation | 35 K |
| Sidelobe Envelope, Co-Pol (dBi) | |
| 100λ/D < θ ≤ 20° | 29 - 25 LogθdBi |
| 20° < θ ≤ 26.3° | -3.5 dBi |
| 26.3° < θ ≤ 48° | 32 - 25 LogθdBi |
| θ > 48° | -10 dBi (averaged) |
| Cross-Pol Isolation Within B.P.E. | |
| Any Angle off Axis | -30 dB Max. |
| -25 dB Max. | |
| VSWR | 1.3:1 Max. Tx, 1.5:1 Max. Rx |
| Axial Ratio (circular) Receive Transmit |
|
| Feed Interface | Available in a variety of designs Available in a variety of designs |
| Receive Transmit | |
| Mechanical | |
| Reflector Material | Glass Fiber Reinforced Polyester SMC |
| Antenna Optics | Prime Focus, Offset Feed |
| Mast Pipe Size | 5” SCH 40 Pipe (5.56” OD) 141 mm. |
| Elevation Adjustment Range | 5° to 90°, Continuous Fine Adjustment |
| Azimuth Adjustment Range | +/- 45° Fine, 360° Continuous |
| Shipping Specifications | C-Band: 245 lbs. (111 kg.) Ku-Band: 235 lbs. (106.5 kg.) |
| Environmental Performance | |
| Wind Loading Operational | 50 mph (80 km/h) |
| Survival | 125 mph (201 km/h) |
| Temperature Operational Survival | -40° to 140° F (-40° to 60° C) -50° to 160° F (-46° to 71° C) |
| Rain | |
| Operational | 1/2”/hr |
| Survival | 2”/hr |
| Ice | |
| Operational Survival | 1/2” radial |
| Atmospheric Conditions | Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas |
| Solar Radiation | 360 BTU/h/ft2 |
5 customers are viewing this product
Details
The CPI 1134 series antenna is ideally suited for demanding commercial and industrial VSAT applications. The one-piece compression molded reflector is precision manufactured for high-efficiency Ku-Band operation. The Az/El mount is designed for easy installation and features fine azimuth and elevation adjustments to dial in and optimize your satellite signal. The Az/El mount is constructed from heavy gauge, pre-galvanized steel for strength and corrosion resistance. A standard Ku-Band linear cross pol Rx/Tx feed comes standard with the Series 1134 Antenna.
| Electrical | Series 1194 Ku-Band |
| Antenna Size | 1.8M (71 in.) |
| Operating Frequency (GHz) | |
| Receive | 10.95 - 12.75 GHz |
| Тransmit | 13.75 - 14.50 GHz |
| Midband Gain ( +/- .2dB) | 45.20 dBi |
| Receive Transmit | 46.70 dBi |
| Antenna Noise Temperature | |
| 20° Elevation | 38 K |
| 30° Elevation | 35 K |
| Sidelobe Envelope, Co-Pol (dBi) | |
| 100λ/D < θ ≤ 20° | 29 - 25 LogθdBi |
| 20° < θ ≤ 26.3° | -3.5 dBi |
| 26.3° < θ ≤ 48° | 32 - 25 LogθdBi |
| θ > 48° | -10 dBi (averaged) |
| Cross-Pol Isolation Within B.P.E. | |
| Any Angle off Axis | -30 dB Max. |
| -25 dB Max. | |
| VSWR | 1.3:1 Max. Tx, 1.5:1 Max. Rx |
| Axial Ratio (circular) Receive Transmit |
|
| Feed Interface | Available in a variety of designs Available in a variety of designs |
| Receive Transmit | |
| Mechanical | |
| Reflector Material | Glass Fiber Reinforced Polyester SMC |
| Antenna Optics | Prime Focus, Offset Feed |
| Mast Pipe Size | 5” SCH 40 Pipe (5.56” OD) 141 mm. |
| Elevation Adjustment Range | 5° to 90°, Continuous Fine Adjustment |
| Azimuth Adjustment Range | +/- 45° Fine, 360° Continuous |
| Shipping Specifications | C-Band: 245 lbs. (111 kg.) Ku-Band: 235 lbs. (106.5 kg.) |
| Environmental Performance | |
| Wind Loading Operational | 50 mph (80 km/h) |
| Survival | 125 mph (201 km/h) |
| Temperature Operational Survival | -40° to 140° F (-40° to 60° C) -50° to 160° F (-46° to 71° C) |
| Rain | |
| Operational | 1/2”/hr |
| Survival | 2”/hr |
| Ice | |
| Operational Survival | 1/2” radial |
| Atmospheric Conditions | Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas |
| Solar Radiation | 360 BTU/h/ft2 |
