CPI
CPI SAT 1.2 Meter Ku-Band Linear, 1132 Series
Product Code:
1132-2110|
Condition:
New
Availability:
YES
Weight:
100.00 KGS
Width:
120.00
(cm)
Height:
120.00
(cm)
Depth:
46.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
Overview

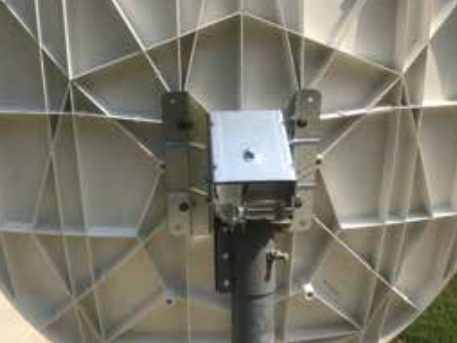

CPI Satcom & Antenna Technologies Inc. (CPI SAT) 1.2m Ku-Band VSAT Antenna Series 1132 is ideally suited for demanding commercial applications. The one-piece compression molded reflector is precision manufactured for high-efficiency Ku-Band operation. The Az/El mount is designed for easy installation on standard 2-7/8” OD or 3.00” OD Installation Mounts, and features fine Azimuth and Elevation Adjustments. The Az/El mount is constructed from heavy gauge pre-galvanized steel for strength and corrosion resistance.
FEATURES
- Transmit quality precision SMC reflector
- Fine elevation and azimuth adjustments
- Available with a variety of feed and feed support options
- Long focal length optics for low cross-pol
- Durable and rugged construction for Ease of shipping and handling
- Heavy gauge galvanized steel Az/El mount
BENEFITS:
• One-piece compression molded reflector
• Easy installation
APPLICATIONS:
• Ideally suited for demanding commercial
applications
| CPI SAT 1.2 Meter Ku-Band Linear, 1132 Series | 1132-2110 | Ku Band 2 Port Tx Rx Cross Pol Feed Assembly | RX 10.70 - 12.75 Ghz TX 13.75 - 14.50 Ghz |
Low Cross Pol Compliance, .8 f/d |
| CPI SAT 1.2 Meter Ku-Band Linear, 1132 Series, Lo Freq | 1132-2150 | Ku Band 2 Port Tx Rx Cross Pol Feed Assembly | RX 10.70 - 11.70 Ghz TX 12.75 - 14.50 Ghz |
Low Cross Pol Compliance, .8 f/d |
