CPI

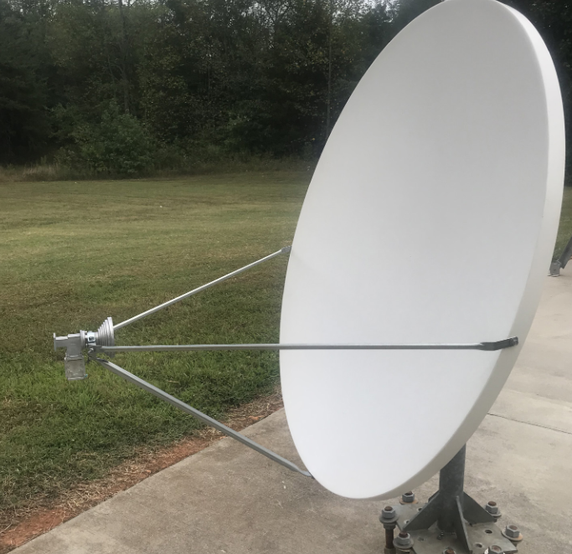

CPI SAT 1.2 Meter Ku-Band Linear, 1122 Series
Product Code:
1122-1110
Condition:
New
Availability:
YES
Weight:
100.00 KGS
Width:
120.00
(cm)
Height:
120.00
(cm)
Depth:
46.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
Overview

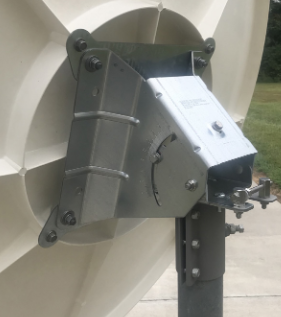

CPI Satcom & Antenna Technologies Inc. (CPI SAT) 1.2m Ku-Band VSAT Antenna Series 1122 is ideally suited for demanding commercial applications. The one-piece compression molded reflector is precision manufactured for high-efficiency Ku-Band operation. The Az/El mount is designed for easy installation on standard 2-7/8” OD or 3.0” OD Installation Mounts, and features fine Azimuth and Elevation Adjustments. The Az/El mount is constructed from heavy gauge pre-galvanized steel for strength and corrosion resistance. An extended Ku-Band RxTx feed is standard with the Series 1122 Antenna.
- 1.2 Meter Offset Transmit Receive Antenna

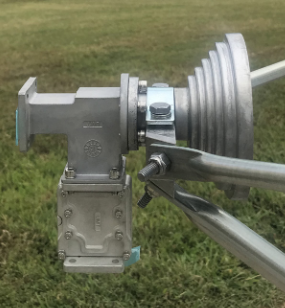

- Ku Band 2 Port Tx Rx Cross Pol Feed Assembly, Tier 1
- Precision Compression Molded .6 f/d Reflector
- Mounts over a 2.88" or 3" OD Mast
- One Man Installation
5 customers are viewing this product
Details
Overview
CPI Satcom & Antenna Technologies Inc. (CPI SAT) 1.2m Ku-Band VSAT Antenna Series 1122 is ideally suited for demanding commercial applications. The one-piece compression molded reflector is precision manufactured for high-efficiency Ku-Band operation. The Az/El mount is designed for easy installation on standard 2-7/8” OD or 3.0” OD Installation Mounts, and features fine Azimuth and Elevation Adjustments. The Az/El mount is constructed from heavy gauge pre-galvanized steel for strength and corrosion resistance. An extended Ku-Band RxTx feed is standard with the Series 1122 Antenna.
- 1.2 Meter Offset Transmit Receive Antenna
- Ku Band 2 Port Tx Rx Cross Pol Feed Assembly, Tier 1
- Precision Compression Molded .6 f/d Reflector
- Mounts over a 2.88" or 3" OD Mast
- One Man Installation
Download
| Download Name | |
| 1.2 Meter Ku-Band Rx/Tx Antenna Data Sheet | |
