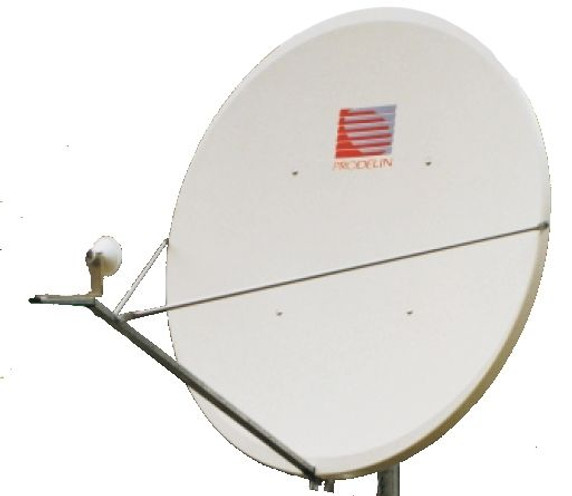

CPI 2.4 Meter C & Ku-Band Antenna Receive Only
Condition:
New
Availability:
YES
Weight:
93.00 KGS
Width:
240.00
(cm)
Height:
240.00
(cm)
Depth:
80.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
Technical Specifications
| Electrical | C-Band | Ku-Band |
| Antenna Size | 2.4M (96in.) | 2.4M (96in.) |
| Operating Frequency (GHz) | 3.625 - 4.2 GHz | 10.95 - 12.75 GHz |
| Midband Gain ( +/- .2dB) | 37.50 dBi | 46.50 dBi |
| Antenna Noise Temp(ClearSky) | ||
| 20° Elevation | 37K | 41K |
| 30° Elevation | 36K | 41K |
| Cross Polarization (Linear) | >30 dB(on axis) | >30 dB(on axis) |
| First Sidelobe (typical) | -20dB | -20dB |
| VSWR | 1.3:1 max | 1.3:1 max |
| Insertion Loss | 0.2 dB Max. | 0.2 dB Max. |
| Mechanical | ||
| Reflector Material | Three Segment Glass Fiber Reinforced Polyester SMC. | |
| ‘Antenna Optics | Prime Focus, Axisymmetric | |
| Mast Pipe Size | 5” SCH 40Pipe (5.56” OD) 14.13 mm. | |
| Elevation Adjustment Range | 0° to 90° Continuous Fine Adjustment | |
| ‘Azimuth Adjustment Range | 360°Continuous Coarse | |
| {/D Ratio/Feed Support | 0.37/Tripod Feed Support | |
| Declination Corrected Polar Range | 90° Arc Coverage with 24” Actuator, Available | |
| ShippingSpecifications (Weight) | AZ/EI: 205 lbs. (93 kg.) | |
