CPI

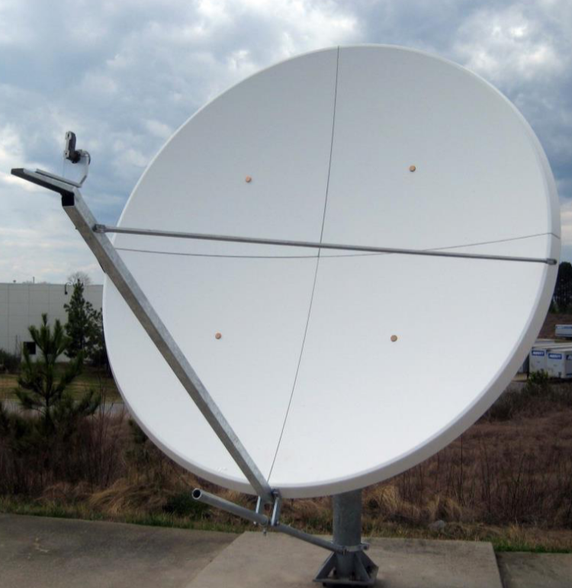

CPI 2.4 m Ka Band Antenna - Transmit Receive Series 3244 w/Ka Band Circular Polarity Feed
Condition:
New
Availability:
YES
Weight:
50.00 KGS
Width:
240.00
(cm)
Height:
240.00
(cm)
Depth:
92.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
Overview

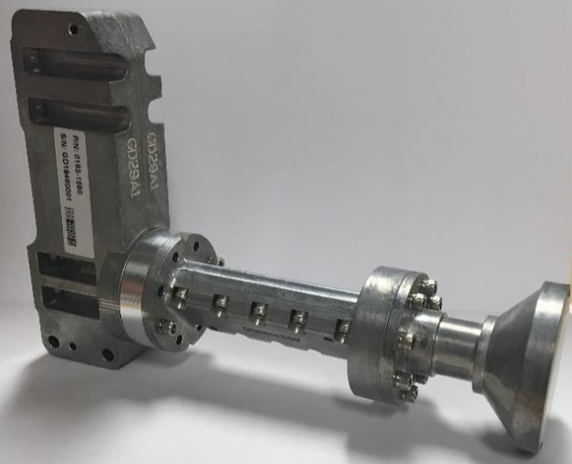

CPI Satcom & Antenna Technologies Inc. (CPI SAT) 2.4m Ka-Band VSAT Antenna Series 3244 is ideally suited for demanding commercial applications. The four-piece compression molded reflector is precision manufactured for high- efficiency Ka-Band operation. The heavy-duty back structure provides precision support to the reflector as needed for Ka band performance, and the az/el mount is designed for easy installation on standard 6-5/8” (168mm) OD mounts. A Ka CP feed is matched to the antenna.
FEATURES
- Transmit Quality Precision SMC Reflector
- Fine Elevation and Azimuth Adjustments
- Transmit Frequency 29.25-30.0 GHz
- Receive Frequency 18.1-20.2 GHz
- Circular Polarity
- Durable and Rugged Construction for Ease of Shipping and Handling
5 customers are viewing this product
Details
Overview
CPI Satcom & Antenna Technologies Inc. (CPI SAT) 2.4m Ka-Band VSAT Antenna Series 3244 is ideally suited for demanding commercial applications. The four-piece compression molded reflector is precision manufactured for high- efficiency Ka-Band operation. The heavy-duty back structure provides precision support to the reflector as needed for Ka band performance, and the az/el mount is designed for easy installation on standard 6-5/8” (168mm) OD mounts. A Ka CP feed is matched to the antenna.
FEATURES
- Transmit Quality Precision SMC Reflector
- Fine Elevation and Azimuth Adjustments
- Transmit Frequency 29.25-30.0 GHz
- Receive Frequency 18.1-20.2 GHz
- Circular Polarity
- Durable and Rugged Construction for Ease of Shipping and Handling
Download
| Download Name | |
| 2.4 m Ka Band Antenna - Transmit Receive Data Sheet | |
