RF-DesignRLC2708A / RLC2716A 1+1 redundant L-Band Line Amplifiers with internal 8:1 and 16:1 Combiner

RF-Design´s RLC2708A and RLC2716A are 1+1 redundant operating line amplifier units with rear-side integrated 8:1 or 16:1 L-Band combiners built into a 1RU/19″ chassis. The units features 8:1 or 16:1 L-Band combining while the two redundant...

Add to Wishlist
Quick view
Compare

RF-Design

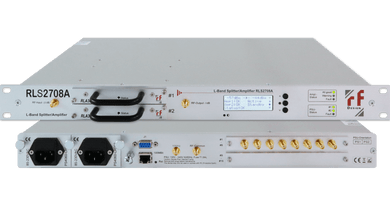

RF-Design RLS2708A / RLS2716A 1+1 redundant L-Band Line Amplifiers with internal 1:8 and 1:16 Splitter

RF-Design´s RLS2708A and RLS2716A are 1+1 redundant operating line amplifier units with rear-side integrated 1:8 or 1:16 L-Band splitters built into a 1RU/19″ chassis. The units features 1:8 or 1:16 L-Band splitting while the two redundant...

Add to Wishlist
Quick view
Compare

RF-Design

RF-Design HQS Series Line-Amplifiers Splitters & Combiners

The HQS series represents variable gain L-Band amplifier units with integrated 1:8 or 1:16 splitters. The variable gain line amplifier modules support gain-control ranges of max. 0 to 25dB or 0 to 30dB. The 19″/1RU rack mount chassis...

Add to Wishlist
Quick view
Compare

RF-Design

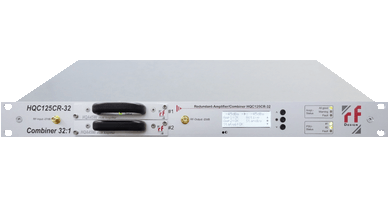

RF-Design HQC125CR-32 1+1 redundant L-Band Line Amplifiers with combiners (max. 32:1)

The HQC125CR-32 is a 1+1 redundant operating line amplifier with rear-side slots for integration of max. 4 passive combiner modules (capacity 8:1 to max. 32:1), built into a compact 1RU/19″ rack mount chassis. The unit features 8:1 to max. 32:1...

Add to Wishlist
Quick view
Compare

RF-Design

RF-DesignHQS125CR-32 1+1 redundant L-Band Line Amplifiers with splitter (max. 1:32)

The HQS125CR-32 is a 1+1 redundant operating line amplifier with rear-side integrated passive splitter modules (1:8, 1:16, 1:24 or 1:32) built into a compact 1RU/19″ rack mount chassis. The unit features max. 1:32 L-Band splitting while the two...

Add to Wishlist
Quick view
Compare

RF-Design

RF-Design HQA Series Single or Quad L-Band Line Amplifiers

The HQA series represents high dynamic L-Band line amplifiers with variable gain control ranges of 0 to 30dB or 10 to 40dB. It combines the corresponding 1RU/19″ rack mount chassis „HQA101C“ (single amplifier population) and the...

Add to Wishlist
Quick view
Compare

RF-Design

RF-Design RLA270A 1+1 redundant L-Band Line Amplifier (0 to 26dB gain)

The RLA270A is a 1+1 redundant professional L-Band line amplifier with variable gain, slope-equalization, 10MHz external reference and switchable LNB-supply housed in a 1RU/19″ chassis. This line amplifier is perfectly suited for RF distribution...

Add to Wishlist
Quick view
Compare

RF-Design

RF-Design HQR145C 1+1 redundant L-Band / ext. L-Band Amplifier (0 to 40dB gain)

The HQR145C represents a 1+1 redundant RF line amplifier in a compact 1RU/19″ rack mount operating at L-Band (950 – 2150MHz) or extended L-Band (850 – 2700MHz) frequency. It comes with variable gain control ranging from 0 to 40dB along...

Add to Wishlist
Quick view
Compare

RF-Design

RF-Design HQR435C N+1 redundant L-Band Line Amplifier, 1+1 to 4+1 (variable gain 0 to 34dB)

The HQR435C is a compact, flexible and modular N+1 redundant L-Band line amplifier system built into a 1RU/19” rack mount chassis. The variable gain adjustment ranges from 0 to 34dB (1dB steps) while it also supports slope equalization so to...

Add to Wishlist
Quick view
Compare

RF-Design

RF-Design HQR445C N+1 redundant L-Band Line Amplifier, 1+1 to 4+1 (variable gain 0 to 40dB)

The HQR445C is a compact, flexible and modular N+1 redundant L-Band line amplifier system built into a 1RU/19” rack mount chassis. The variable gain adjustment ranges from 0 to 40dB (1dB steps) while it also supports slope equalization so to...

Add to Wishlist
Quick view
Compare

ETL Systems

L-band Fixed 20dB Gain Line Amplifier with External DC Bias, DC and 10MHz Pass

L-band Amplifier - gain block with 20dB gain and 10 MHz and DC pass on all ports. Requires 8-18V external DC bias. Applications: Typical fields of applications are telecom infrastructures, satellite systems, microwave links, test and instrumentation...

Add to Wishlist
Quick view
Compare

ETL Systems

L-band Fixed 20dB Gain Line Amplifier with External DC Bias

L-band Amplifier - gain block with 20dB gain, DC block on all ports. Requires 8-18V external DC bias. Applications: Typical fields of applications are telecom infrastructures, satellite systems, microwave links, test and instrumentation and radar...
