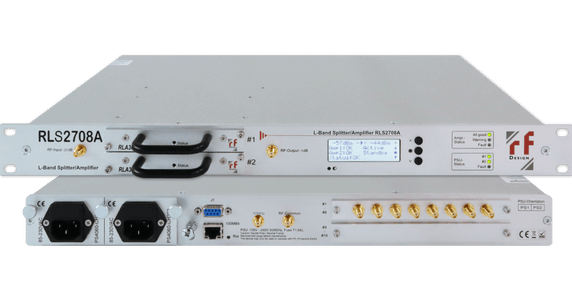

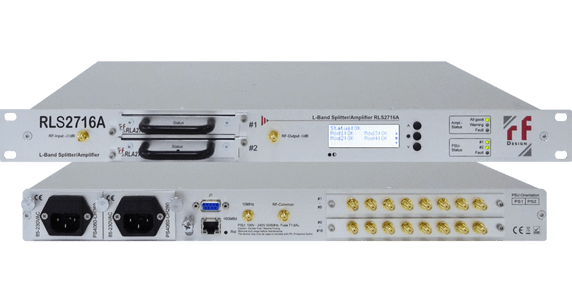

RF-Design RLS2708A / RLS2716A 1+1 redundant L-Band Line Amplifiers with internal 1:8 and 1:16 Splitter

No reviews yet

Request a quote at Contact@orbitalconnect.com or +1.888.315.9545

RF-Design´s RLS2708A and RLS2716A are 1+1 redundant operating line amplifier units with rear-side integrated 1:8 or 1:16 L-Band splitters built into a 1RU/19″ chassis. The units features 1:8 or 1:16 L-Band splitting while the two redundant operating amplifiers allow variable gain adjustment so to reach best RF performance within the network. Besides the variable gain adjustment and 1:8 or 1:16 splitting the units also feature slope equalization, 10MHz external reference, RF power monitoring, switchable LNB-supply as well as 1:1 redundant dual power supply. The RLS2708A and RLS2716A units represent flexible and compact RF distribution & amplification systems perfectly suited for use in Teleports, Satellite Earth Stations, as well as Broadcast- and Broadband facilities wherever accurate RF power, highest stability and availability is necessary. The units have a front-side LC-Display/keypads for local configuration while front-side status LED´s indicating amplifier and power supply status. Remote configuration can be done via the Ethernet-Interface (WebGUI, SNMP).

Features & Benefits



  • Space saving 1RU/19″ chassis

  • 1+1 redundant operating amplifier modules and 1:8 or 1:16 splitter in one unit

  • >5ms switchover between active & hot-standby amplifier module

  • Variable gain adjustment

  • Supports slope equalization

  • Front-side monitoring port -20dB

  • RF-power monitoring

  • Threshold alarm function and switchable output limiter

  • 10MHz external reference input

  • Switchable LNB-supply

  • Local & remote access & configuration (WebGUI, SNMP)

  • Front side status LED´s

  • 1:1 redundant power supply / Optionally 48V DC psu

5 customers are viewing this product
  • Norton Secured
  • TRUSTe Verified
  • Authorized.net
  • Accredited Business
  • Verified by Visa
  • Mastercard SecureCode
Details

RF-Design´s RLS2708A and RLS2716A are 1+1 redundant operating line amplifier units with rear-side integrated 1:8 or 1:16 L-Band splitters built into a 1RU/19″ chassis. The units features 1:8 or 1:16 L-Band splitting while the two redundant operating amplifiers allow variable gain adjustment so to reach best RF performance within the network. Besides the variable gain adjustment and 1:8 or 1:16 splitting the units also feature slope equalization, 10MHz external reference, RF power monitoring, switchable LNB-supply as well as 1:1 redundant dual power supply. The RLS2708A and RLS2716A units represent flexible and compact RF distribution & amplification systems perfectly suited for use in Teleports, Satellite Earth Stations, as well as Broadcast- and Broadband facilities wherever accurate RF power, highest stability and availability is necessary. The units have a front-side LC-Display/keypads for local configuration while front-side status LED´s indicating amplifier and power supply status. Remote configuration can be done via the Ethernet-Interface (WebGUI, SNMP).

Features & Benefits



  • Space saving 1RU/19″ chassis

  • 1+1 redundant operating amplifier modules and 1:8 or 1:16 splitter in one unit

  • >5ms switchover between active & hot-standby amplifier module

  • Variable gain adjustment

  • Supports slope equalization

  • Front-side monitoring port -20dB

  • RF-power monitoring

  • Threshold alarm function and switchable output limiter

  • 10MHz external reference input

  • Switchable LNB-supply

  • Local & remote access & configuration (WebGUI, SNMP)

  • Front side status LED´s

  • 1:1 redundant power supply / Optionally 48V DC psu
