Work Microwave

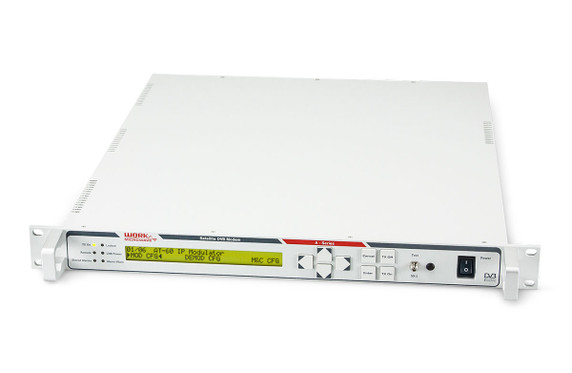

Work Microwave A-Series AT-60 Satellite Modulator
Product Code:
AT-60
Condition:
New
Weight:
10.00 KGS
Width:
48.30
(cm)
Height:
50.50
(cm)
Depth:
44.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The AT-60 Satellite Modulator provides IP connectivity over DVB uplinks, in particular as integral part of VSAT hub stations. Operators can serve all applications from very low up to extremely high throughput. Real-time monitoring and control open to extensions with custom protocols allows integration into any system.
Key Features:
- DVB-S2X - ETSI EN 302 307-2
- DVB-S2 - ETSI EN 302 307-1
- DVB-S2X modulations: QPSK to 256APSK normal, short, linear
- DVB-S2 modulations: QPSK to 32APSK; normal, short
- Symbol rates from 100 ksps to 75 Msps
- Data rate up to 360 Mbit/s integrated
- Roll-Off: 35%, 25%, 20%, 15%, 10%, 5%
- Exceptionally clean signal output and internal processing
- Predistortion for automatic group delay and nonlinearity compensation
- Operates as layer 3 bridge or layer 3 router including traffic shaping / QoS functionality
- ACM controller open to various ACM systems GSE and MPE encapsulation integrated
- Customizable processing infrastructure for easy integration into large communication systems
- Flexible software architecture for easy extension and future virtualization of functionality
- 3 years warranty
5 customers are viewing this product
Details
The AT-60 Satellite Modulator provides IP connectivity over DVB uplinks, in particular as integral part of VSAT hub stations. Operators can serve all applications from very low up to extremely high throughput. Real-time monitoring and control open to extensions with custom protocols allows integration into any system.
Key Features:
- DVB-S2X - ETSI EN 302 307-2
- DVB-S2 - ETSI EN 302 307-1
- DVB-S2X modulations: QPSK to 256APSK normal, short, linear
- DVB-S2 modulations: QPSK to 32APSK; normal, short
- Symbol rates from 100 ksps to 75 Msps
- Data rate up to 360 Mbit/s integrated
- Roll-Off: 35%, 25%, 20%, 15%, 10%, 5%
- Exceptionally clean signal output and internal processing
- Predistortion for automatic group delay and nonlinearity compensation
- Operates as layer 3 bridge or layer 3 router including traffic shaping / QoS functionality
- ACM controller open to various ACM systems GSE and MPE encapsulation integrated
- Customizable processing infrastructure for easy integration into large communication systems
- Flexible software architecture for easy extension and future virtualization of functionality
- 3 years warranty
