WERBEL MICROWAVE

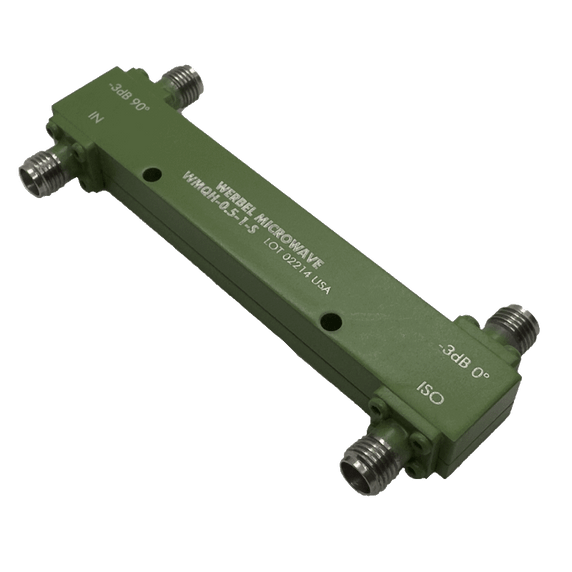

WERBEL MICROWAVE WMQH-0.5-1-S 90° Hybrid, 0.5-1GHz, SMA Female
Product Code:
WMQH-0.5-1-S
Condition:
New
Weight:
0.10 KGS
Width:
1.27
(cm)
Height:
0.97
(cm)
Depth:
7.77
(cm)
$409.95
The 90-degree hybrid model WMQH-0.5-1-S covers the 500 MHz to 1GHz octave band, providing a 3dB split with tight phase shift of 90 degrees and amplitude unbalance. High isolation 26dB typical. Excellent return loss, 24dB typical, minimizes reflection.
Key Features:
• Octave band
• High isolation
• Excellent return loss
• Low unbalance
| Name | Type | Frequency Low (MHz) | Frequency High (MHz) | Isolation Db Typ | Input Power (W Max) | Connectors |
| WMQH-0.5-1-S | 90° | 500 | 1000 | 26 | 50 | SMA |
5 customers are viewing this product
Details
The 90-degree hybrid model WMQH-0.5-1-S covers the 500 MHz to 1GHz octave band, providing a 3dB split with tight phase shift of 90 degrees and amplitude unbalance. High isolation 26dB typical. Excellent return loss, 24dB typical, minimizes reflection.
Key Features:
• Octave band
• High isolation
• Excellent return loss
• Low unbalance
| Name | Type | Frequency Low (MHz) | Frequency High (MHz) | Isolation Db Typ | Input Power (W Max) | Connectors |
| WMQH-0.5-1-S | 90° | 500 | 1000 | 26 | 50 | SMA |
