Taoglas

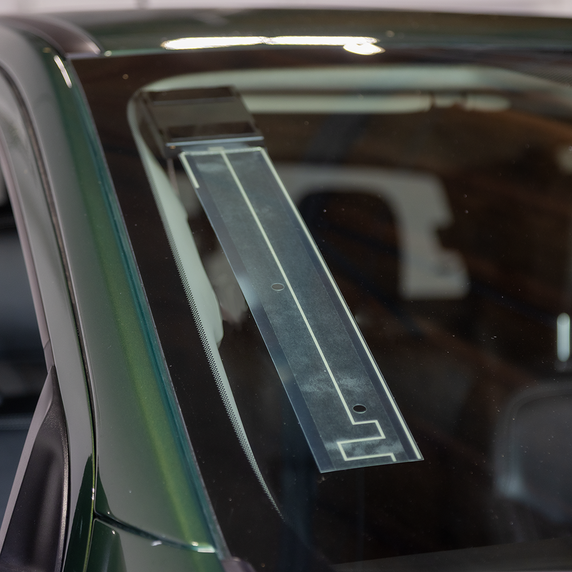

Taoglas Watson Series MA2332 Covert Triband Transparent Film Antenna covering 150-900MHz
Product Code:
MA2332.A.001
Condition:
New
Weight:
0.13 KGS
Width:
7.00
(cm)
Height:
16.70
(cm)
Depth:
56.23
(cm)
$46.83
The Taoglas Watson Series MA2332 is a next-generation, high-performance, low-profile triband film antenna, designed for demanding automotive and heavy equipment applications. Housed in a robust ABS+PC enclosure with an internal PCB, the MA2332 delivers reliable performance across the 150 MHz, 450 MHz, and 700 MHz frequency bands. Its compact, covert design ensures seamless integration into modern vehicles without compromising durability or RF performance.
Certified to the stringent TS16949 automotive quality standard, the MA2332 is approved for OEM deployment and meets the rigorous requirements of heavy-duty truck and equipment manufacturers.
This makes it the ideal solution for:
- OEM automotive platforms
- Heavy-duty trucks and plant machinery
- Recreational vehicles (RVs)
- Motorcycles
- Specialized and industrial equipment
The antenna includes a 330mm (13″) low-loss RG-316 coaxial cable terminating in a SMA male connector as standard. Custom cable lengths and connector configurations are available upon request but a cable assembly with SMA(F) to QMA(M) is advised for use.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, ISM/LoRA |
| IP Rating | N/A |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 562.35 |
| Width (mm) | 70 |
| Height (mm) | 16.7 |
| Cable Type | RG-316 |
| Connector Body Style | Straight |
| Polarity | n/a |
| Frequency Range | 150MHz - 900MHz |
| Connector Polarity | None |
| Cable Length (mm) | 330 |
| VSWR | 02:01 |
| Weight (g) | 130 |
| RoHS | Yes |
| Gain (Max) | 2 |
5 customers are viewing this product
Details
The Taoglas Watson Series MA2332 is a next-generation, high-performance, low-profile triband film antenna, designed for demanding automotive and heavy equipment applications. Housed in a robust ABS+PC enclosure with an internal PCB, the MA2332 delivers reliable performance across the 150 MHz, 450 MHz, and 700 MHz frequency bands. Its compact, covert design ensures seamless integration into modern vehicles without compromising durability or RF performance.
Certified to the stringent TS16949 automotive quality standard, the MA2332 is approved for OEM deployment and meets the rigorous requirements of heavy-duty truck and equipment manufacturers.
This makes it the ideal solution for:
- OEM automotive platforms
- Heavy-duty trucks and plant machinery
- Recreational vehicles (RVs)
- Motorcycles
- Specialized and industrial equipment
The antenna includes a 330mm (13″) low-loss RG-316 coaxial cable terminating in a SMA male connector as standard. Custom cable lengths and connector configurations are available upon request but a cable assembly with SMA(F) to QMA(M) is advised for use.
| TECHNICAL SPECIFICATION | |
| Name | Value |
| Technology | External Antennas, ISM/LoRA |
| IP Rating | N/A |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 562.35 |
| Width (mm) | 70 |
| Height (mm) | 16.7 |
| Cable Type | RG-316 |
| Connector Body Style | Straight |
| Polarity | n/a |
| Frequency Range | 150MHz - 900MHz |
| Connector Polarity | None |
| Cable Length (mm) | 330 |
| VSWR | 02:01 |
| Weight (g) | 130 |
| RoHS | Yes |
| Gain (Max) | 2 |
